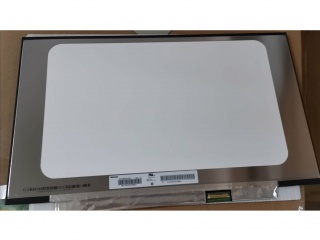

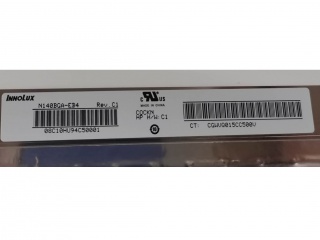

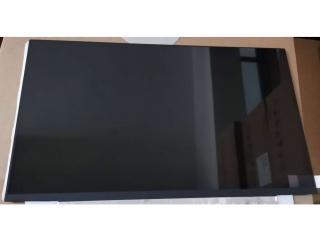

| Part Number | N140BGA-EB4 |
| Mark | Innolux |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | Innolux |
| Modell | N140BGA-EB4 (CMN14E3) |
| diagonal Gréisst | 14.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 112PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 309.399(H)×173.952(V) mm |
| kontur dim. | 315.9(H)×197.53(V) ×3(D) mm |
| bezel Beräich | - |
| Behandlung | Glare (Haze 0%), Hard coating (3H) |
| luminance | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) (TM) |
| Vue Richtung | 6 o'clock |
| Äntwert Zäit | 3/7 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K 45% NTSC |
| Liichtquell | WLED [10S3P] , 15K hours , With LED Driver |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
