| Part Number | N140BGE-L22 |
| Mark | Innolux |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 650:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |

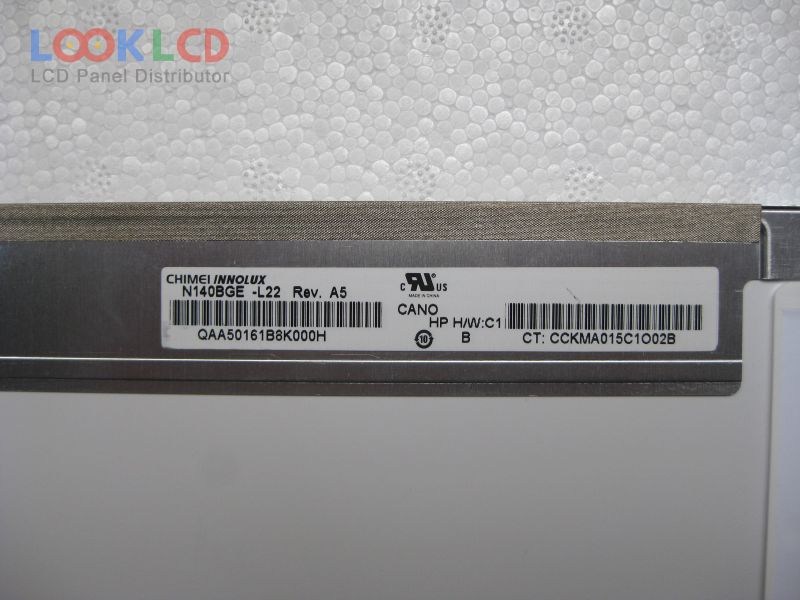

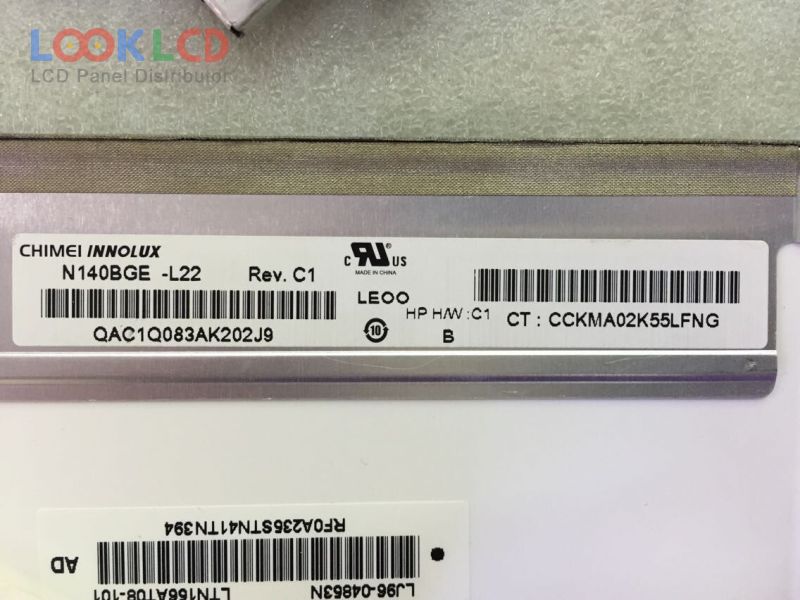

| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | N140BGE-L22 30 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 309.399×173.952 mm |
| skizzéieren | 323.5×192×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 650:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 4/6 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
