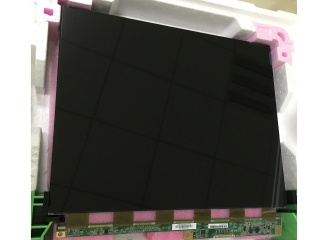

| Part Number | MV190E0B-N20 |
| Mark | BOE |
| Gréisst | 19.0 |
| Applikatioun | Desktop Monitor |
| Opléisung | 1280×1024 |
| Zesummesetzung | CELL , a-Si TFT-LC |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Fabrikant beschwéiert | BOE |
| Écran Gréisst | 19.0 inch |
| Pixel Zuel | 1280(RGB)×1024 (SXGA) 86PPI |
| aktiv Beräich (mm) | 374.784 × 299.827 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 0 cd/m² |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Glas deck | 0.50+0.50 mm |
| Faarfdéift | 16.7M |
| mass | 361g (Typ.) |
| Erfrëschungsrate | 60Hz |
| Chauffer ic Lëscht | Built-in COF 6 source chips |
| Signal Typ | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Spannungsversuergung | 5.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | MV190E0B-N20 |
| Écran Typ | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 388.7 × 308.7 × 1.32 (H×V×D) |
| Behandlung | Antiglare (Haze 25%), Hard coating (3H) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Äntwert | 14 (Typ.)(G to G) ms |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| transmissivitéit | 4.5% (Typ.)(with Polarizer) |
| benotzt fir | Desktop Monitor |
| touchscreen | Without |
