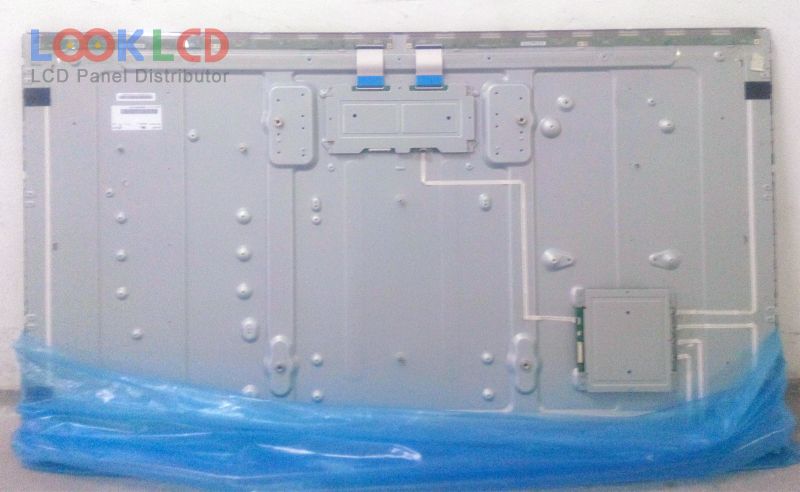

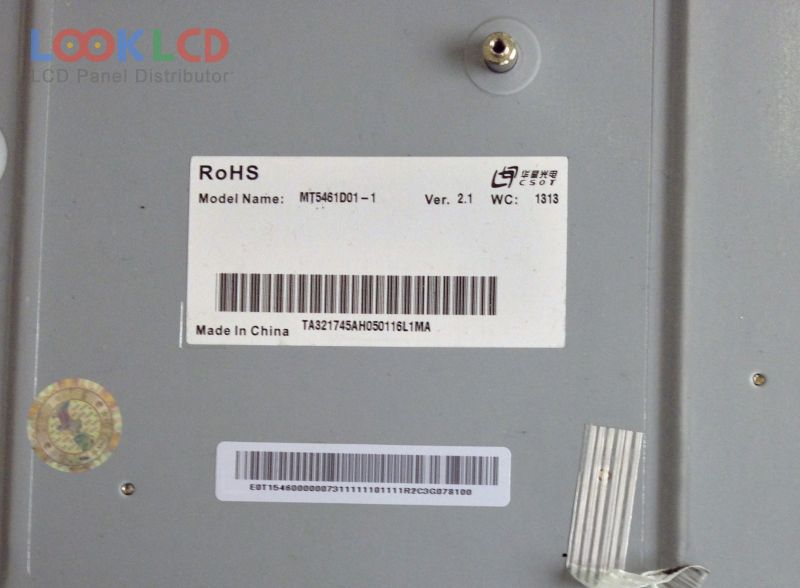

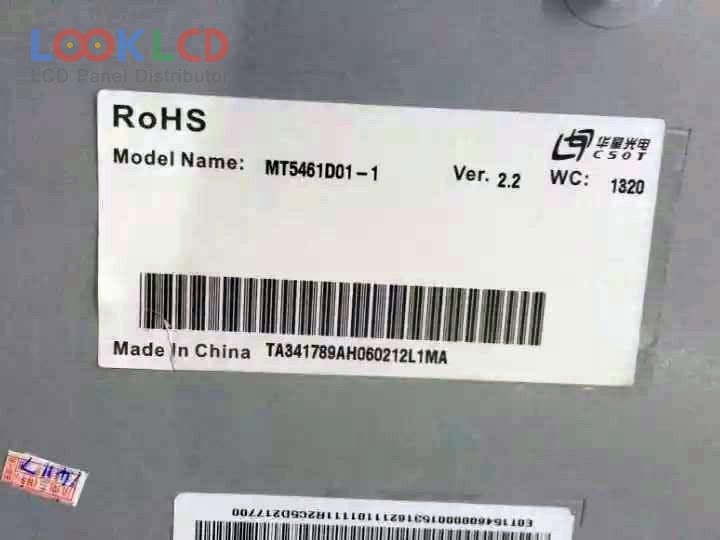

| Part Number | MT5461D01-1 |
| Mark | CSOT |
| Gréisst | 55 |
| Applikatioun | LCTV |
| Opléisung | 3840×2160 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 4000:1 |
| Faarwen | 1.07B |
| Géigeliicht | WLED |
| Interface | V-by-One |
| Panel Mark | CSOT |
| Panel Modell | MT5461D01-1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 55 inch |
| Resolutioun | 3840(RGB)×2160 , UHD |
| Display Modus | HVA, Normally Black, Transmissive |
| aktiv Beräich | 1209.6×680.4 mm |
| skizzéieren | 1225.8×696.6×33.8 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 4000:1 (Typ.) |
| weisen Faarwen | 1.07B (8-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 6.5 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | V-by-One 8 lane, 51 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
