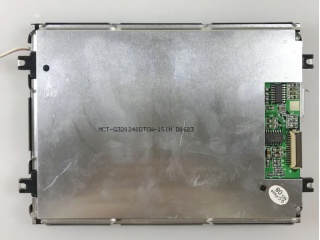

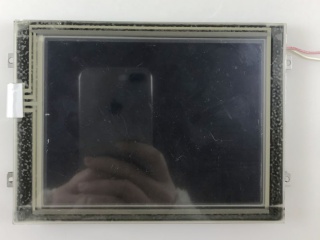

| Part Number | MCT-G320240DTCW-151N |
| Mark | TRULY |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 320×240 |
| Zesummesetzung | CSTN-LCD , LCM |
| Hellegkeet | |
| CR | 45:1 |
| Faarwen | Color |
| Géigeliicht | CCFL |
| Interface | Parallel |
| Mark | TRULY |
| diagonal Gréisst | 5.7 inch |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| aktiv Beräich | 115.18(H)×86.38(V) mm |
| bezel Beräich | 119.18(H)×90.38(V) mm |
| luminance | 220 cd/m² (Typ.) |
| Vue Richtung | - |
| Vue Wénkel | 50/50/55/40 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | Color |
| Gewiicht | - |
| Frame Taux | - |
| Interface Typ | Parallel Data (1ch, 8-bit) , 16 pins Connector |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -10 ~ 60 °C |
| Modell | MCT-G320240DTCW-151N |
| Typ | CSTN-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 158.5(H)×109(V) ×9.2(D) mm |
| Behandlung | - |
| Kontrast Verhältnis | 45:1 (Typ.) (TM) |
| Äntwert Zäit | 215/110 (Typ.)(Tr/Td) |
| Betribssystemer Modus | STN, Normally Black, Transmissive |
| Liichtquell | CCFL [1 pcs] , 15K hours , W/O Driver |
| entworf fir | Industrial |
| Touch Panel | Without |
