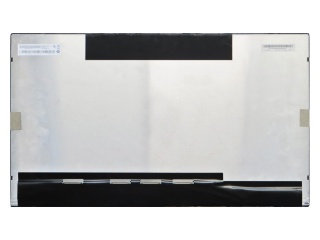

| Part Number | M270DTN01.00E |
| Mark | AUO |
| Gréisst | 27.0 |
| Applikatioun | Desktop Monitor Gami |
| Opléisung | 2560×1440 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 18S4P |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | M270DTN01.00E |
| Panel Gréisst | 27.0" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 2560(RGB)×1440, Quad-HD, 108PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 596.736(W)×335.664(H) mm |
| bezel Ouverture | 601.6(W)×340.15(H) mm |
| Kontur Gréisst | 613.6(W)×356.85(H) ×10.9(D) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | - |
| Äntwert Zäit | 3.5/1.5 (Typ.)(Tr/Td) |
| weisen Faarwen | 16.7M 72% NTSC |
| Lampe Typ | 18S4P WLED , 30K hours , Without Driver |
| Frequenz | 165Hz |
| Touchscreens | Without |
| Panel Gewiicht | 2.20/2.31Kgs (Typ./Max.) |
| Applikatioun | Desktop Monitor Gaming |
| Signal Interface | LVDS (8 ch, 8-bit) , 130 pins Connector |
| Input Volt | 12.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
