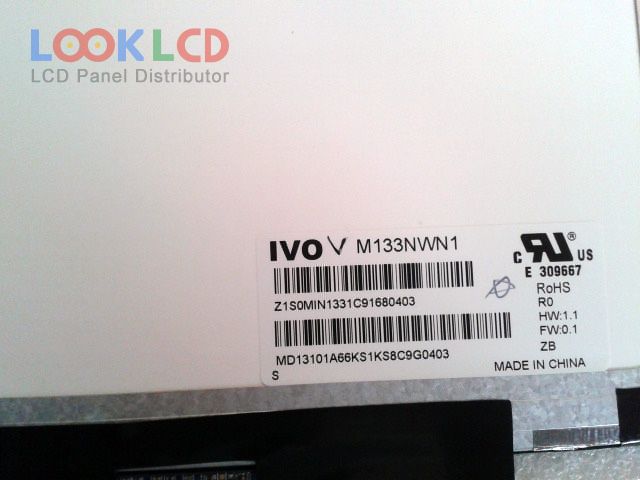

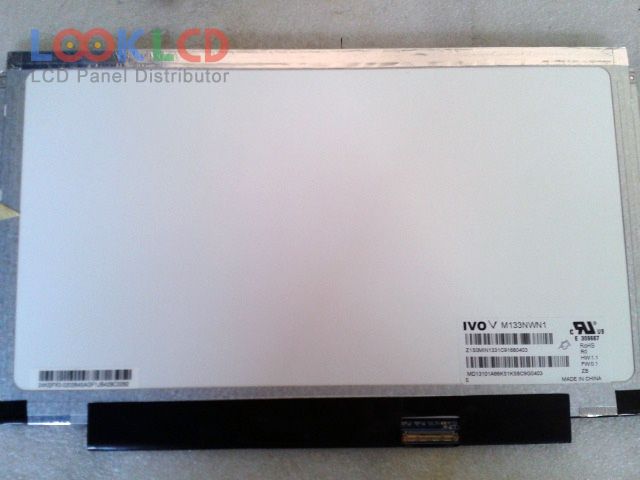

| Part Number | M133NWN1 R0 |
| Mark | IVO |
| Gréisst | 13.3 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | IVO |
| Panel Modell | M133NWN1 R0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 13.3 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 293.42×164.97 mm |
| skizzéieren | 314.1×188.7×3 mm |
| Form Stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |

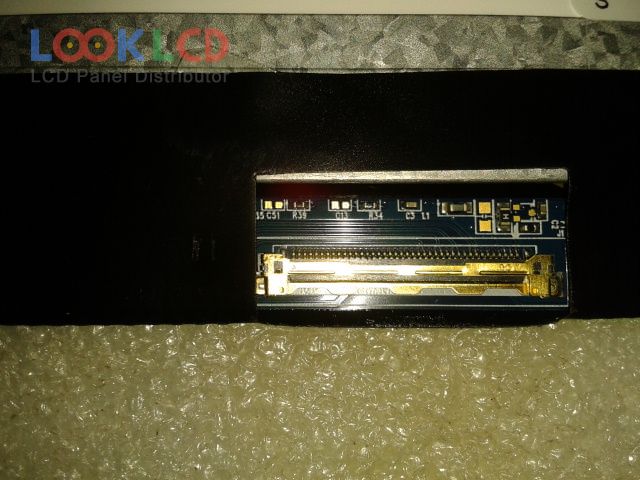

| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| B131RW02 V0 | AUO | 13.1 | 1600×900 |
| LP140WH2-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLEA | LG Display | 14.0 | 1366×768 |
| LP140WX1-TL02 | LG Display | 14.0 | 1280×768 |
| LP154WE3-TLA1 | LG Display | 15.4 | 1680×1050 |
| LP154WX2-TL01 | LG Display | 15.4 | 1280×800 |
| LQ164M1LD4C | SHARP | 16.4 | 1920×1080 |
| LTD121KA0S | TOSHIBA | 12.1 | 1024×768 |
| N116HSE-EJ1 | Innolux | 11.6 | 1920×1080 |
| TV122WXM-NW0 | BOE | 12.2 | 1280×800 |
