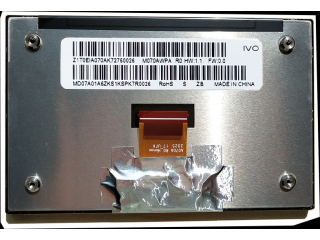

| Part Number | M070AWPA R0 |
| Mark | IVO |
| Gréisst | 7.0 |
| Applikatioun | Outdoor High Brightn |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | IVO |
| Modell | M070AWPA R0 |
| diagonal Gréisst | 7.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 152.4(H)×91.4(V) mm |
| kontur dim. | 166(H)×105.8(V) ×10.5(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 72% NTSC |
| Liichtquell | WLED [6S3P] , 30K hours , W/O Driver |
| Gewiicht | 187/206g (Typ./Max.) |
| entworf fir | Outdoor High Brightness Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
