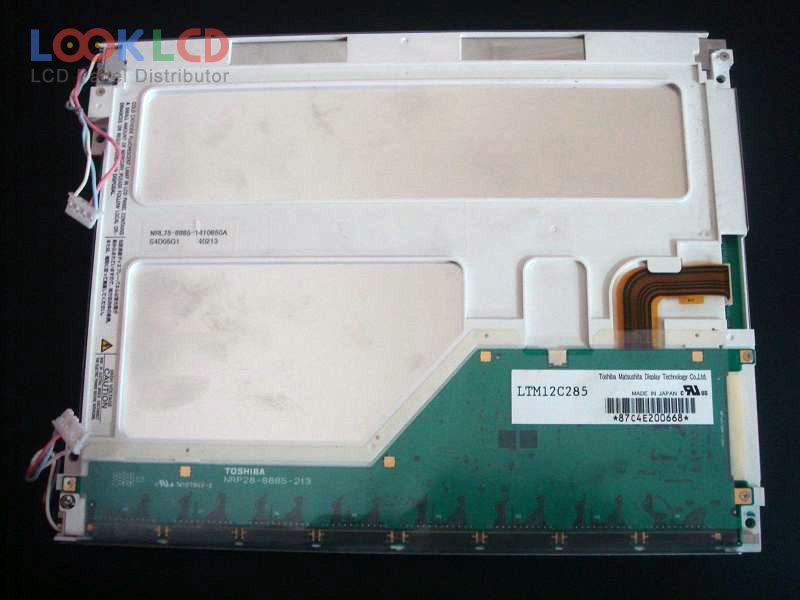

| Part Number | LTM12C285 |
| Mark | TOSHIBA |
| Gréisst | 12.1 |
| Applikatioun | IA |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | Toshiba Matsushita |
| Panel Modell | LTM12C285 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 246×184.5 mm |
| skizzéieren | 278.3×216×13.5 mm |
| Uewerfläch | |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 50/50 (Max.)(Tr/Td) |
| Vue Wénkel | |
| Lampe Typ | 4 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 32 pins |
| Input Volt | 3.3V (Typ.)(VDD) |
| Applikatioun | IA |
| LTM10C209A | TOSHIBA | 10.4 | 640×480 |
| LTM10C327F | TOSHIBA | 10.4 | 1024×768 |
| LTM10C345 | TOSHIBA | 10.4 | 1024×768 |
| LTM12C283 | TOSHIBA | 12.1 | 800×600 |
| LTM170ET01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| LTM185AT04 | Samsung | 18.5 | 1366×768 |
| LTM190M2-L31(Glare) | Samsung | 19.0 | 1440×900 |
| AA104SG04 | Mitsubishi | 10.4 | 800×600 |
| AA121SL01 | Mitsubishi | 12.1 | 800×600 |
| EL320.240-FA3 | Lumineq | 4.9 | 320×240 |
| G121AGE-L03 | Innolux | 12.1 | 800×600 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| LJ089MB2S01 | SHARP | 8.9 | 640×400 |
| LQ10D131 | SHARP | 10.4 | 640×480 |
| LTM10C209H | TOSHIBA | 10.4 | 640×480 |
| NL10276BC20-18F | NLT | 10.4 | 1024×768 |
| TM12864G3CCWGWA-1 | Tianma | 2.4 | 128×64 |
