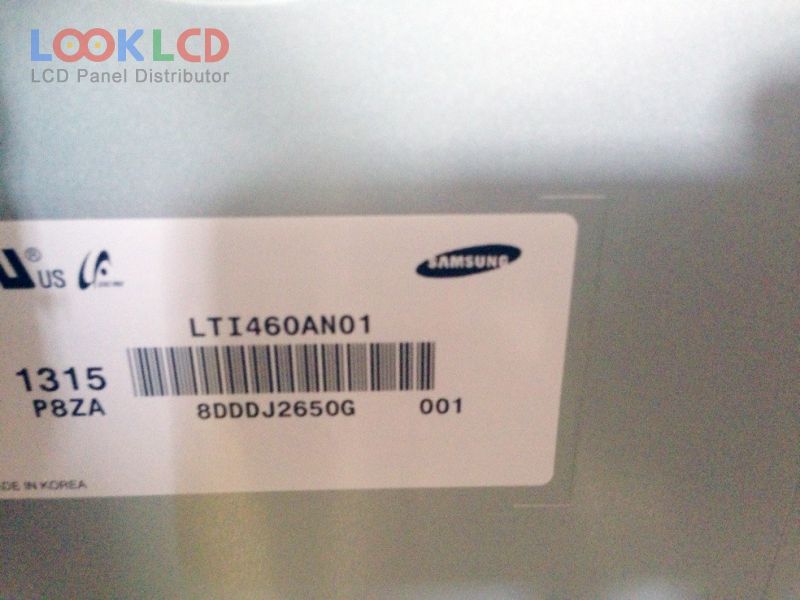

| Part Number | LTI460AN01 |
| Mark | Samsung |
| Gréisst | 46 |
| Applikatioun | DID |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTI460AN01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 46 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | S-PVA, Normally Black, Transmissive |
| aktiv Beräich | 1018.35×572.544 mm |
| skizzéieren | 1025.65×579.844×59.53 mm, Videowall Seam 7.3 mm |
| Uewerfläch | Antiglare (Haze 2.3%), Hard coating (2H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 3000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 12 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | DID |
| LTI460AN01 | Samsung | 46 | 1366×768 |
| LTI460AP01 | Samsung | 46 | 1366×768 |
| LTI460AP01-101 | Samsung | 46 | 1366×768 |
| LTI460HA03 | Samsung | 46 | 1920×1080 |
| LTI460HN05 | Samsung | 46 | 1920×1080 |
| LTI460HN08 | Samsung | 46 | 1920×1080 |
| LTI460HN09 | Samsung | 46 | 1920×1080 |
| LTI460HN10 | Samsung | 46 | 1920×1080 |
| LTI460HN11 | Samsung | 46 | 1920×1080 |
| LTI460WT-L02 | Samsung | 46 | 1366×768 |
| LD470DUN-TFC1 | LG Display | 47 | 1920×1080 |
| LD470DXS-SCA1 | LG Display | 47 | 1366×768 |
| LD470DXS-SCB1 | LG Display | 47 | 1366×768 |
| LD550DUS-SEF1 | LG Display | 55 | 1920×1080 |
| LTI216XM01 | Samsung | 21.6 | 960×960 |
| LTI460AA04 | Samsung | 46 | 1366×768 |
| LTI460AN01 | Samsung | 46 | 1366×768 |
| LTI460HN10 | Samsung | 46 | 1920×1080 |
| LTI550HN08 | Samsung | 55 | 1920×1080 |
| LTI550HN11 | Samsung | 55 | 1920×1080 |
