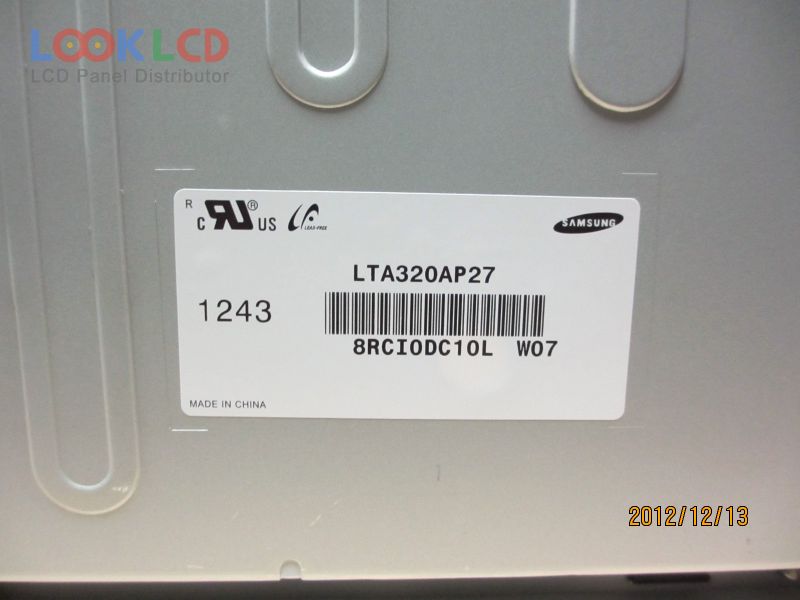

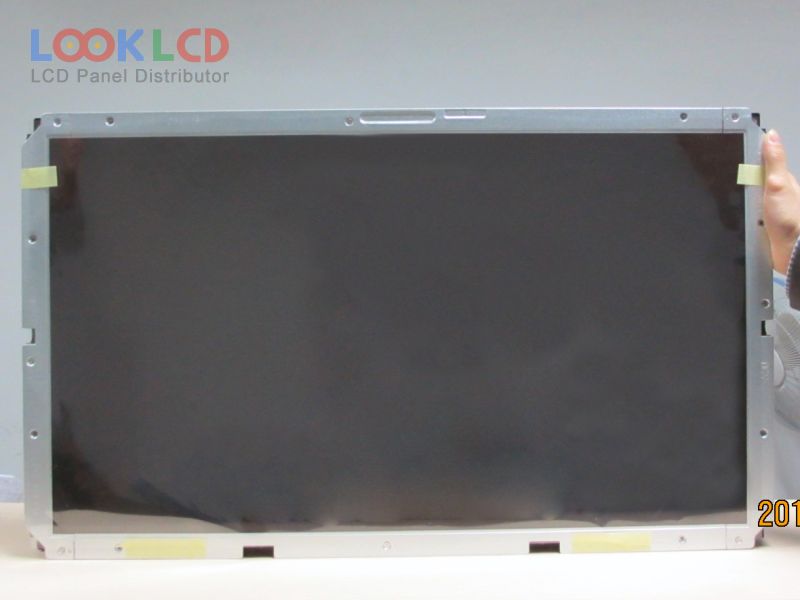

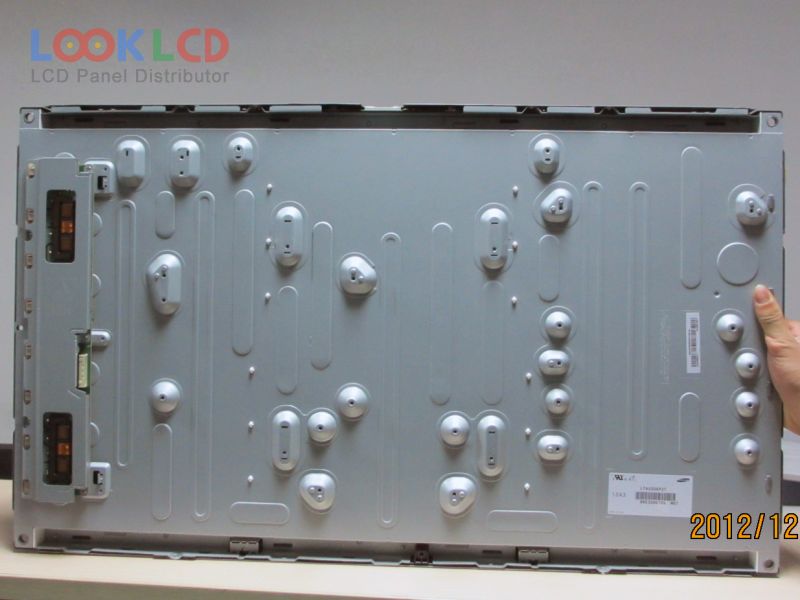

| Part Number | LTA320AP27 |
| Mark | Samsung |
| Gréisst | 31.5 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 4000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTA320AP27 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 31.5 inch |
| Resolutioun | 1366×768(RGB) , WXGA |
| Display Modus | PVA, Normally Black, Transmissive |
| aktiv Beräich | 697.685×392.256 mm |
| skizzéieren | 760×450 mm |
| Uewerfläch | Antiglare (Haze 7%), Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 4000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
