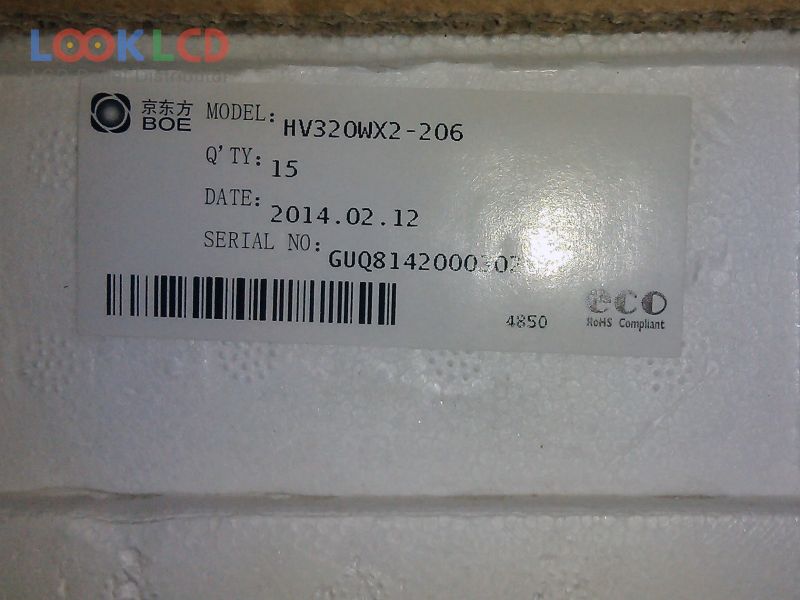

| Part Number | HV320WX2-206 |
| Mark | BOE |
| Gréisst | 31.5 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | BOE |
| Panel Modell | HV320WX2-206 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 31.5 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | AFFS, Normally Black, Transmissive |
| aktiv Beräich | 697.685×392.256 mm |
| skizzéieren | 716×411.1 mm |
| Uewerfläch | Antiglare (Haze 10%), Hard coating (3H) |
| Glas Déift | 0.50+0.50 mm |
| transmissivitéit | 6.6% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 1200:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
| HV320WHB-N00 | BOE | 31.5 | 1366×768 |
| HV320WHB-N06 | BOE | 31.5 | 1366×768 |
| HV320WHB-N80 | BOE | 31.5 | 1366×768 |
| HV320WX2-200 | BOE | 31.5 | 1366×768 |
| HV320WX2-201 | BOE | 31.5 | 1366×768 |
| HV320WX2-206 | BOE | 31.5 | 1366×768 |
| HV320WX2-500 | BOE | 31.5 | 1366×768 |
| HV320WXC-100 | BOE | 31.5 | 1366×768 |
| HV320WXC-201 | BOE | 31.5 | 1366×768 |
| LTF320HM01 | Samsung | 31.5 | 1920×1080 |
| LC130V01-A2K1 | LG Display | 13.0 | 640×480 |
| LC320WUN-SCA3 | LG Display | 31.5 | 1920×1080 |
| LC370WXN-SBD1 | LG Display | 37 | 1366×768 |
| LC420EUH-PEF1 | LG Display | 42 | 1920×1080 |
| LC550EUN-PEF1 | LG Display | 55 | 1920×1080 |
| LC550WUD-SBM4 | LG Display | 55 | 1920×1080 |
| T260XW02 VL | AUO | 26.0 | 1366×768 |
| T460HB01 V0 | AUO | 46 | 1920×1080 |
| T650HVJ02.0 | AUO | 65 | 1920×1080 |
| V645HQ1-LS1 | Innolux | 65 | 1920×1080 |
