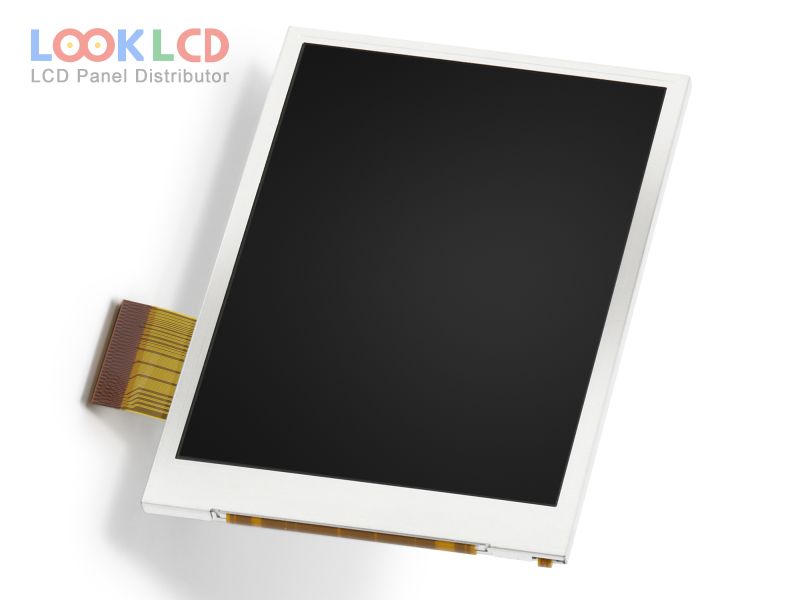

| Part Number | LS037V7DW06 |
| Mark | SHARP |
| Gréisst | 3.7 |
| Applikatioun | HHP |
| Opléisung | 480×640 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 900:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LS037V7DW06 |
| Panel Typ | CG-Silicon , LCM |
| Panel Gréisst | 3.7 inch |
| Resolutioun | 480(RGB)×640 , VGA |
| Display Modus | ASV, Normally Black, Transflective |
| aktiv Beräich | 56.16×74.88 mm |
| skizzéieren | 65×89.2×3.6 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.)(Transmissive) |
| weisen Faarwen | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| Äntwert Zäit | 15/20 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 61 pins |
| Input Volt | 5.5/1.8V (Typ.)(VDD5/VCI) |
| Applikatioun | HHP |
