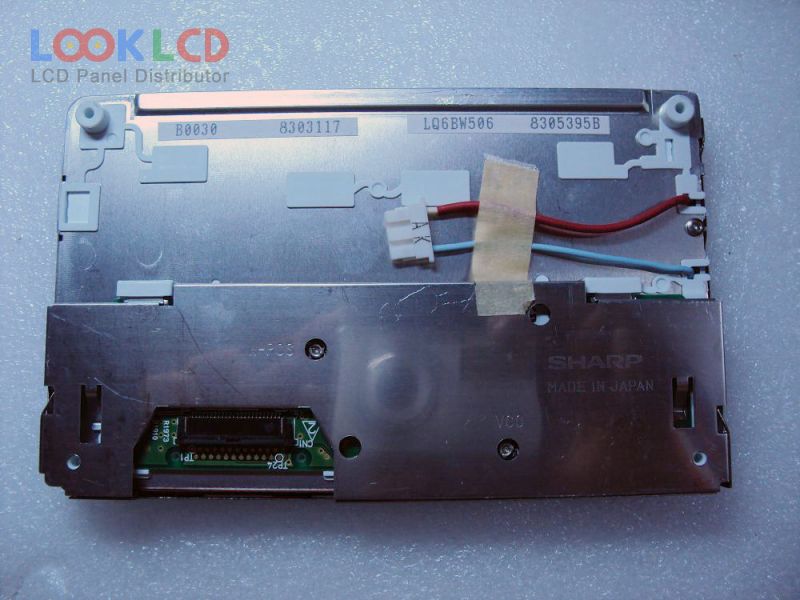

| Part Number | LQ6BW506 |
| Mark | SHARP |
| Gréisst | 5.8 |
| Applikatioun | CNS |
| Opléisung | 400×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 60:1 |
| Faarwen | |
| Géigeliicht | CCFL |
| Interface | Analog |
| Panel Mark | SHARP |
| Panel Modell | LQ6BW506 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.8 inch |
| Resolutioun | 400(RGB)×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 127.2×71.8 mm |
| skizzéieren | 145×89 mm |
| Uewerfläch | Antiglare, Antireflection |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 60:1 (Min.) |
| weisen Faarwen | |
| Äntwert Zäit | 30/50 (Typ.)(Tr/Td) |
| Vue Wénkel | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| Input Volt | 5.3/13.0/-16.0V (Typ.)(VSH/VGH/VGL) |
| Applikatioun | CNS |
