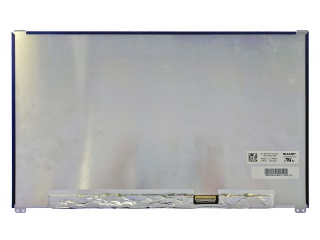

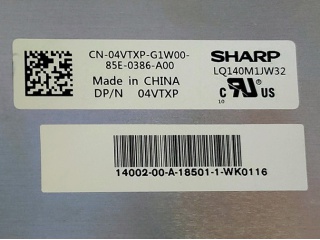

| Part Number | LQ140M1JW32 |
| Mark | Sharp |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM , Oxide TFT-LC |
| Hellegkeet | |
| CR | 1500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | Sharp |
| Écran Gréisst | 14.0 inch |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 157PPI |
| aktiv Beräich (mm) | 309.312 × 173.988 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 300 cd/m² (Typ.) |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 16.7M 100% sRGB |
| kontur Form | Slim (PCBA Bent, T≤3.0mm) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | LQ140M1JW32 (SHP1497) |
| Écran Typ | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 314.4 × 193.51 × 5.15 (H×V×D) |
| Behandlung | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1500 : 1 (Typ.) (TM) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | New Mode2, Normally Black, Transmissive |
| benotzt fir | Laptop |
| touchscreen | Without |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| B140XW02 V2 | AUO | 14.0 | 1366×768 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP140WH6-TLB1 | LG Display | 14.0 | 1366×768 |
| LQ140Z1JW01 | SHARP | 14.0 | 3200×1800 |
| LTN140AT01-G01 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-T01 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-W01 | Samsung | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
