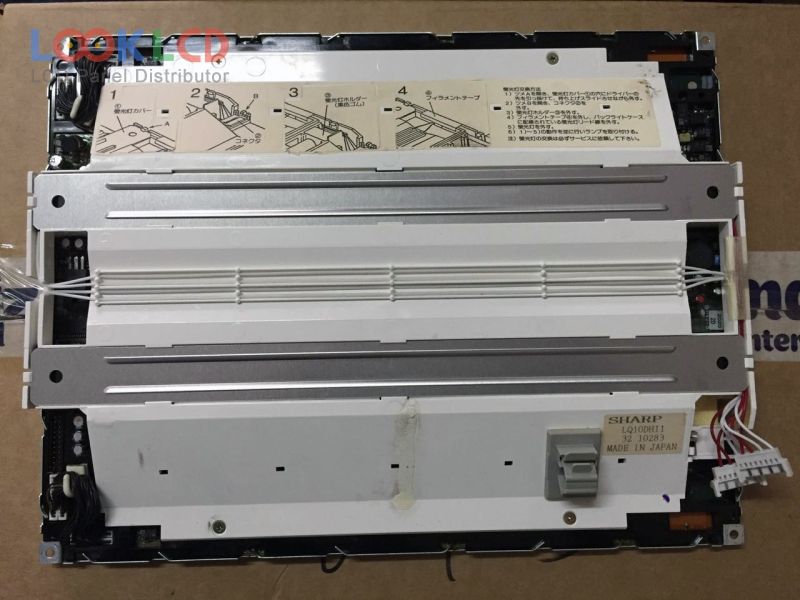

| Part Number | LQ10DH11 |
| Mark | SHARP |
| Gréisst | 10.4 |
| Applikatioun | IA |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 80 |
| CR | 60:1 |
| Faarwen | 512 |
| Géigeliicht | HCFL |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ10DH11 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 283×217 mm |
| Uewerfläch | Antiglare, Hard coating (2H) |
| Hellegkeet | 80 cd/m² (Typ.) |
| Kontrast Verhältnis | 60:1 (Min.) |
| weisen Faarwen | 512 (3-bit) |
| Äntwert Zäit | 30/50 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 2 pcsHCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 3-bit), 22 pins |
| Input Volt | 5.0/12.0V (Typ.)(VCC/VDD) |
| Applikatioun | IA |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LQ104V1DG72 | SHARP | 10.4 | 640×480 |
| LQ106K1LA01C | SHARP | 10.6 | 1280×768 |
| LQ10DH11 | SHARP | 10.4 | 640×480 |
| LQ10PX01 | SHARP | 10.4 | 1024×768 |
| LQ10W03 | SHARP | 10.4 | 1024×600 |
| AM-1024600L7TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| DMF-50174ZNB-FW | Kyocera | 5.7 | 320×240 |
| LM-CE53-22NEK | SANYO | 9.4 | 640×480 |
| LM64C12P | SHARP | 9.4 | 640×480 |
| LM64P723 | SHARP | 9.4 | 640×480 |
| LQ150X1LG91 | SHARP | 15.0 | 1024×768 |
| M150MNN1 R1 | IVO | 15.0 | 1024×768 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| PD064VXA | E Ink | 6.4 | 640×480 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
