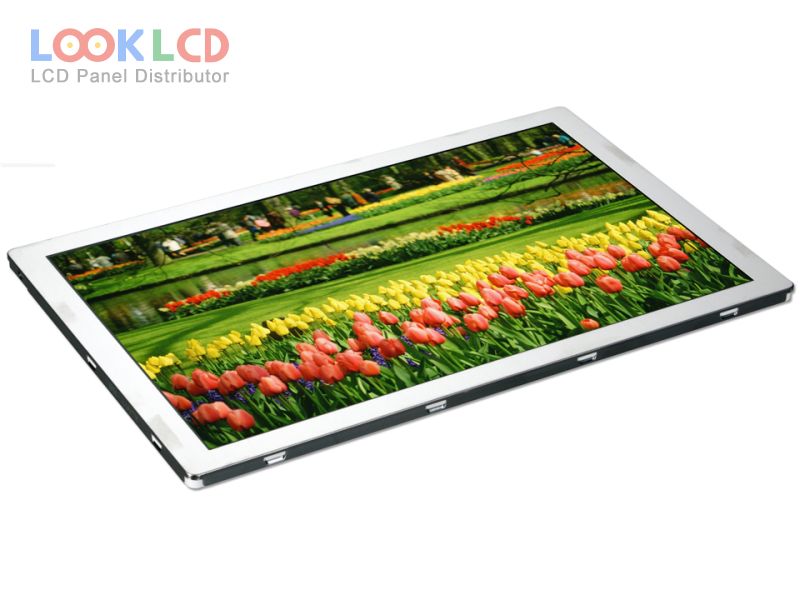

| Part Number | LQ085Y3DW01 |
| Mark | SHARP |
| Gréisst | 8.5 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ085Y3DW01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.5 inch |
| Resolutioun | 800×480(RGB) , WVGA |
| Display Modus | ASV, Normally Black, Transmissive |
| aktiv Beräich | 184.8×110.88 mm |
| skizzéieren | 210×134 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 9S4PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
