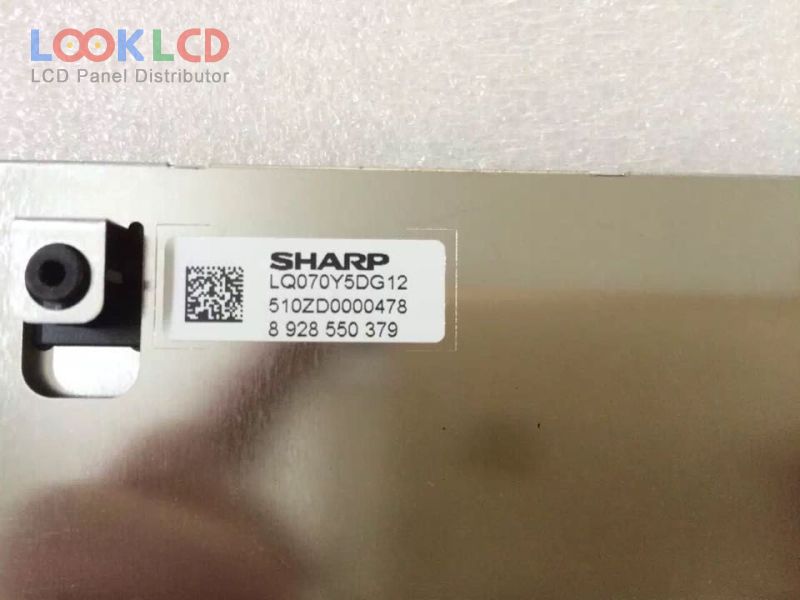

| Part Number | LQ070Y5DG12 |
| Mark | SHARP |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ070Y5DG12 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| Uewerfläch | Antiglare |
| Hellegkeet | |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Frequenz | 60Hz |
| Lampe Typ | WLED |
| Signal Interface | CMOS (1 ch, 6-bit) |
| Applikatioun | CNS |
