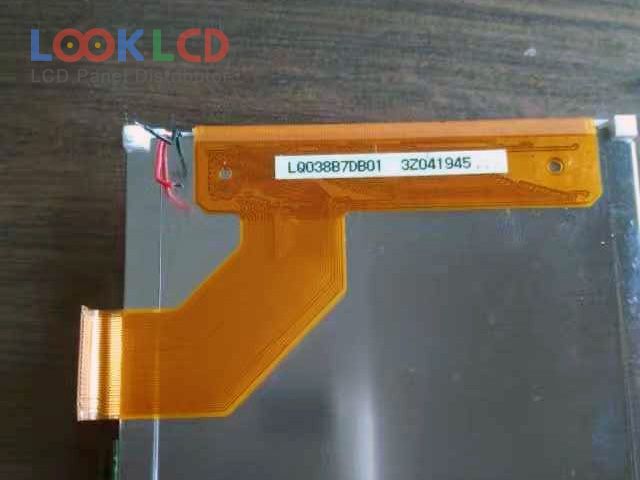

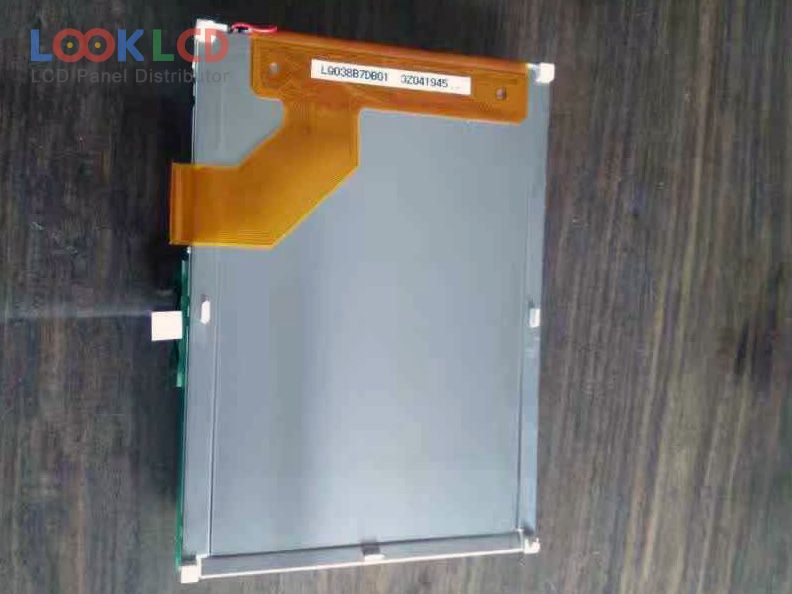

| Part Number | LQ038B7DB01 |
| Mark | SHARP |
| Gréisst | 3.8 |
| Applikatioun | HHP |
| Opléisung | 320×480 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | 60:1 |
| Faarwen | 262K |
| Géigeliicht | No B/L |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ038B7DB01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.8 inch |
| Resolutioun | 320(RGB)×480 , HVGA |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 52.8×79.2 mm |
| skizzéieren | 64.9×92.3 mm |
| Uewerfläch | Clear, Hard coating |
| Hellegkeet | |
| Kontrast Verhältnis | 60:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 20/35 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | No B/L |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 39 pins |
| Input Volt | 4.8/3.3/13.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| Applikatioun | HHP |
