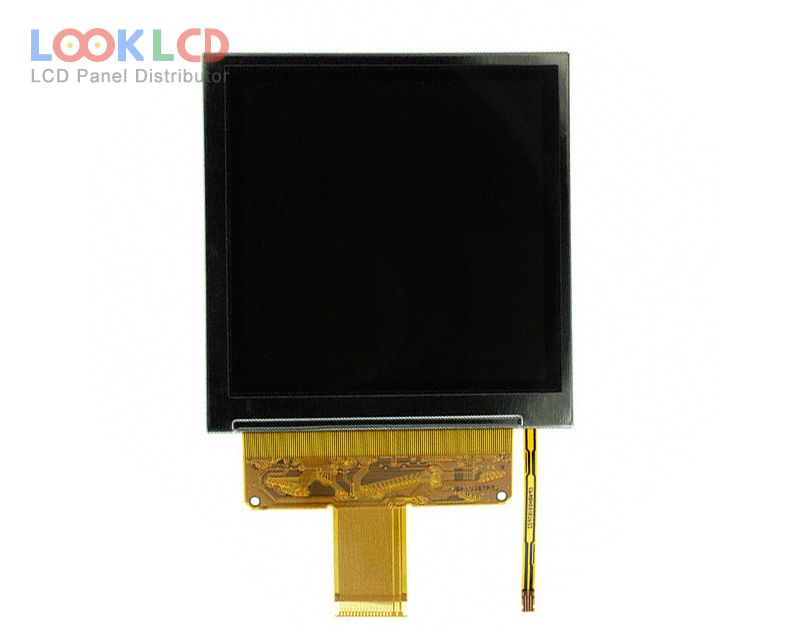

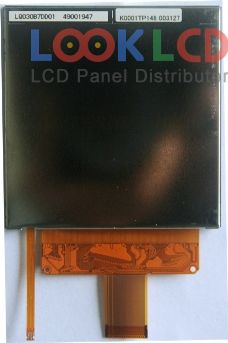

| Part Number | LQ030B7DD01 |
| Mark | SHARP |
| Gréisst | 3.0 |
| Applikatioun | HHP |
| Opléisung | 320×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 110 |
| CR | 70:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ030B7DD01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.0 inch |
| Resolutioun | 320(RGB)×320 |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 53.76×53.76 mm |
| skizzéieren | 66.6×68.5 mm |
| Uewerfläch | Clear, Hard coating |
| Hellegkeet | 110 cd/m² (Typ.) |
| Kontrast Verhältnis | 70:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 30/50 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| Lampe Typ | 5S1PWLED |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 39 pins |
| Input Volt | 5.0/3.3/15/-10V (Typ.)(VSHA/VSHD/VDD/VEE) |
| Applikatioun | HHP |
