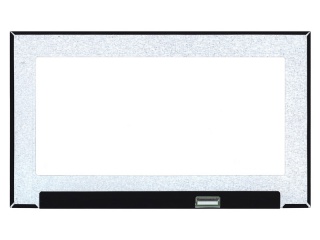

| Part Number | LP156WFD-SPH2 |
| Mark | LG Display |
| Gréisst | 15.6 |
| Applikatioun | Laptop Industrial |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | LG Display |
| Écran Gréisst | 15.6 inch |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 141PPI |
| aktiv Beräich (mm) | 344.16 × 193.59 (H×V) |
| luminance | 220 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 262K 45% NTSC |
| kontur Form | Slim (PCBA Bent, T≤3.0mm) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | LP156WFD-SPH2 |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 350.66 × 205.69 × 5.4 (H×V×D) |
| Kontrast Verhältnis | 700 : 1 (Typ.) (TM) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| benotzt fir | Laptop Industrial |
| touchscreen | In-Cell Touch |
