LG Display LP154WX7-TLP2 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

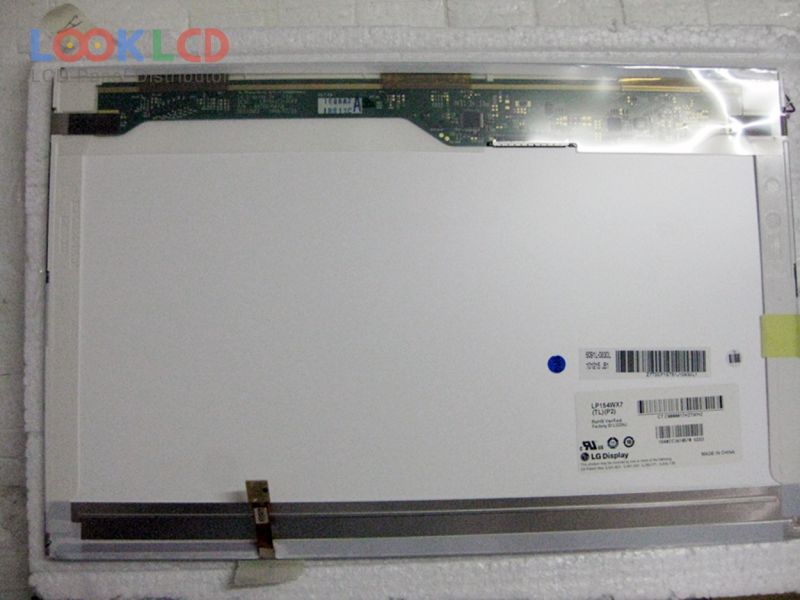

LP154WX7-TLP2

LP154WX7-TLP2
LP154WX7-TLP2 thumb
Mark
LG Display
Gréisst
15.4
Applikatioun
NBPC
Opléisung
1280×800
Zesummesetzung
LCM
Hellegkeet
220
CR
500:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
7477
Spezifikatioune

Part Number LP154WX7-TLP2
MarkLG Display
Gréisst15.4
ApplikatiounNBPC
Opléisung1280×800
ZesummesetzungLCM
Hellegkeet220
CR500:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLP154WX7-TLP2
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst15.4 inch
Resolutioun1280(RGB)×800 , WXGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich331.2×207 mm
skizzéieren344×222×6.5 mm
Form StilWedge (PCBA Bent, Depth ≥5.2mm)
UewerflächAntiglare
Hellegkeet220 cd/m² (Typ.)
Kontrast Verhältnis500:1 (Typ.)
weisen Faarwen262K (6-bit), CIE193145%
Äntwert Zäit16 (Typ.)(Tr+Td)
Vue Wénkel45/45/20/40 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ7S6PWLEDWithout Driver
Signal InterfaceLVDS (1 ch, 6-bit), 30 pins
Input Volt3.3V (Typ.)
ApplikatiounNBPC
Famill Modell
LP154W01-TLF1 LG Display 15.4 1280×800
LP154W02-TL06 LG Display 15.4 1680×1050
LP154WP2-TLA1 LG Display 15.4 1440×900
LP154WP2-TLA2 LG Display 15.4 1440×900
LP154WP4-TLB1 LG Display 15.4 1440×900
LP154WU1-TLB1 LG Display 15.4 1920×1200
LP154WX4-TLB2 LG Display 15.4 1280×800
LP154WX4-TLC3 LG Display 15.4 1280×800
LP154WX7-TLB1 LG Display 15.4 1280×800
LP154WX7-TLB3 LG Display 15.4 1280×800
