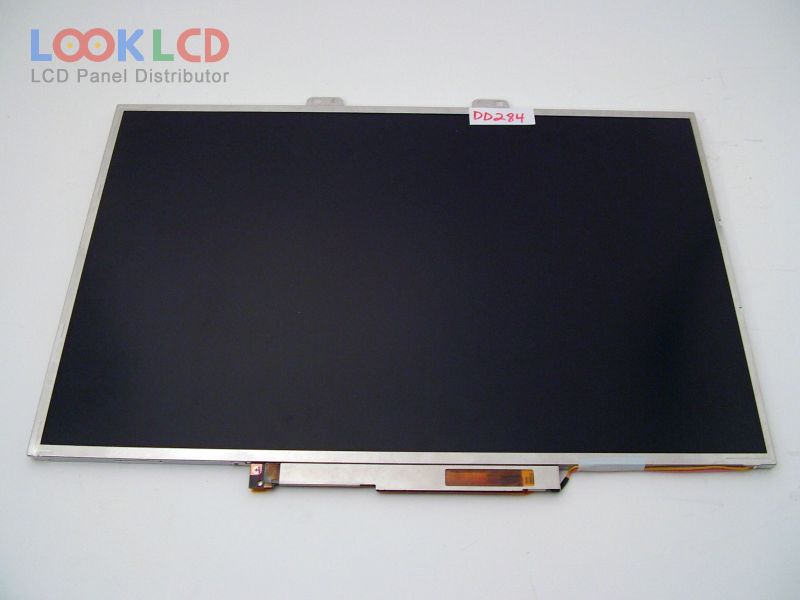

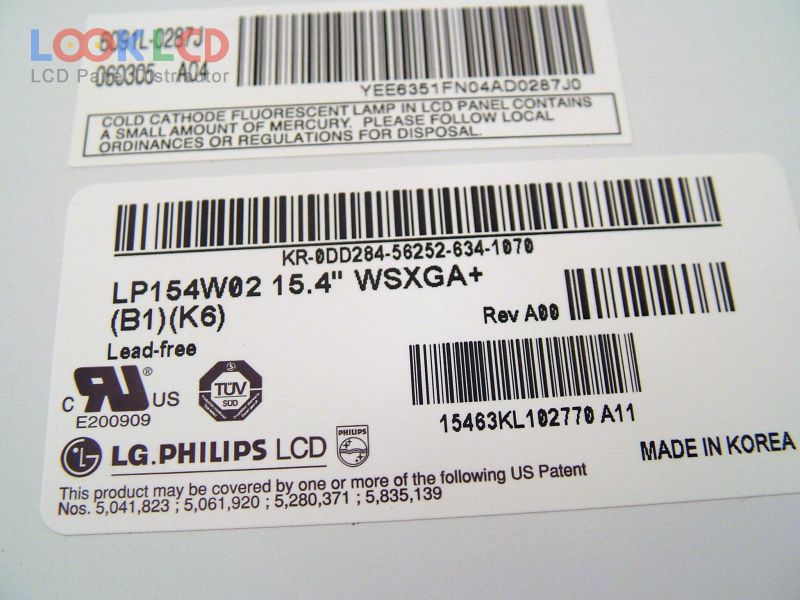

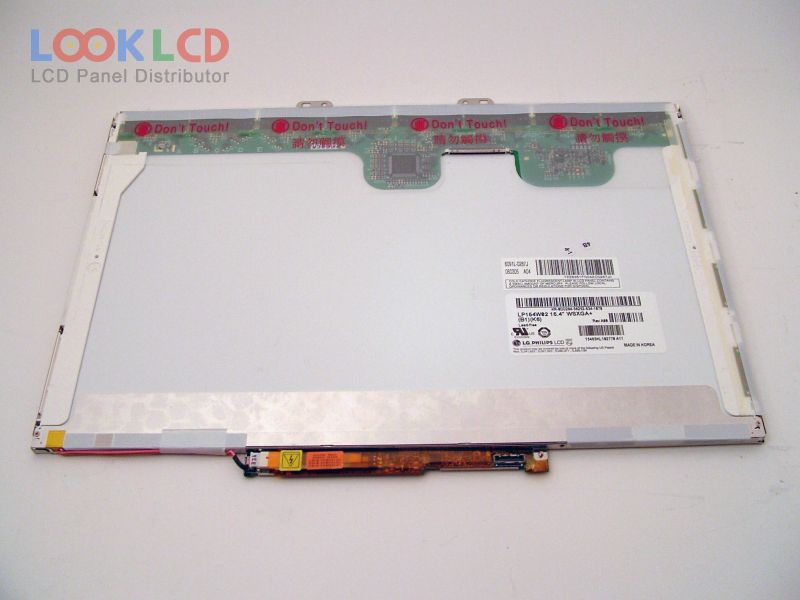

| Part Number | LP154W02-B1K6 |
| Mark | LG Display |
| Gréisst | 15.4 |
| Applikatioun | NBPC |
| Opléisung | 1680×1050 |
| Zesummesetzung | LCM |
| Hellegkeet | 185 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LP154W02-B1K6 6 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.4 inch |
| Resolutioun | 1680(RGB)×1050 , WSXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 331.38×207.11 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare (Haze 12%) |
| Hellegkeet | 185 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 65/65/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
