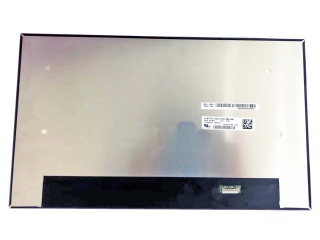

| Part Number | LP133WF7-SPF1 |
| Mark | LG Display |
| Gréisst | 13.3 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | LG Display |
| Modell | LP133WF7-SPF1 (LGD05DB) |
| diagonal Gréisst | 13.3 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 293.76(H)×165.24(V) mm |
| kontur dim. | 300.26(H)×177.55(V) ×4.4(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1500:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 73% NTSC |
| Liichtquell | WLED , 15K hours , With LED Driver |
| Form Stil | Slim (PCBA Bent, T≤3.0mm) |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
