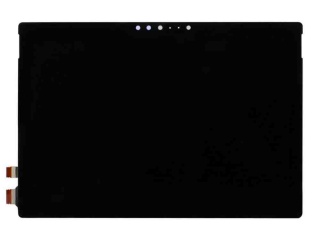

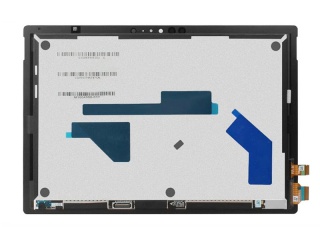

| Part Number | LP123WQ1-SPA1 |
| Mark | LG Display |
| Gréisst | 12.3 |
| Applikatioun | Laptop |
| Opléisung | 2736×1824 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1400:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 12K hours , No Driver |
| Interface | eDP |
| Fabrikant beschwéiert | LG Display |
| Modell Numm | LP123WQ1-SPA1 |
| Écran Gréisst | 12.3 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 2736(RGB)×1824 267PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 259.78 × 173.19 (H×V) |
| Kontur (mm) | 265.38 × 183.49 × 4.25 (H×V×D) |
| Bezel Beräich (mm) | 262.18 × 175.59 (H×V) |
| Behandlung | Hard coating (3H) |
| luminance | - |
| Kontrast Verhältnis | 1400 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 27/46 (Max.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.7M |
| kontur Form | Slim (PCBA Bent, T≤3.0mm) |
| benotzt fir | Laptop |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | eDP (4 Lanes) , HBR2 (5.4G/lane) , Connector 60 pins |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 60 °C |
