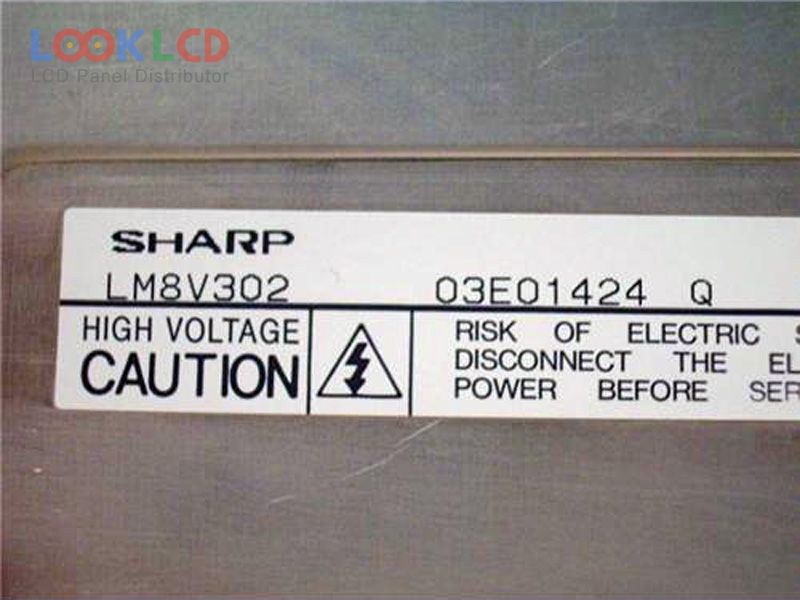

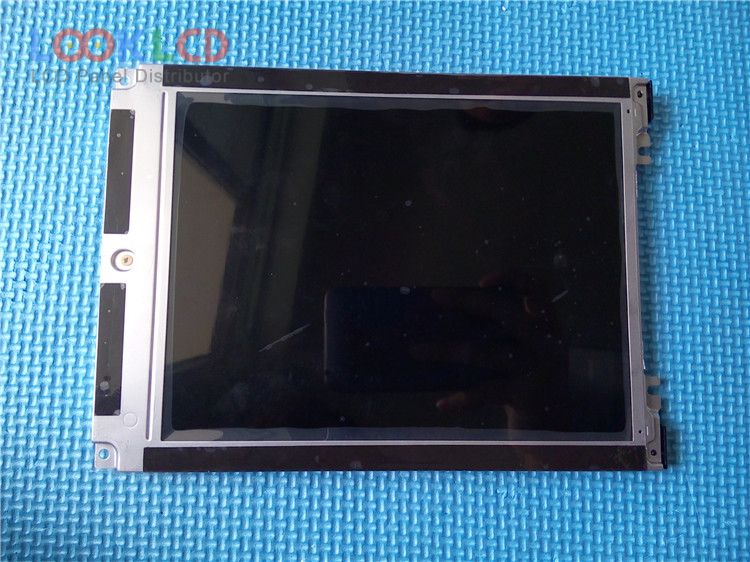

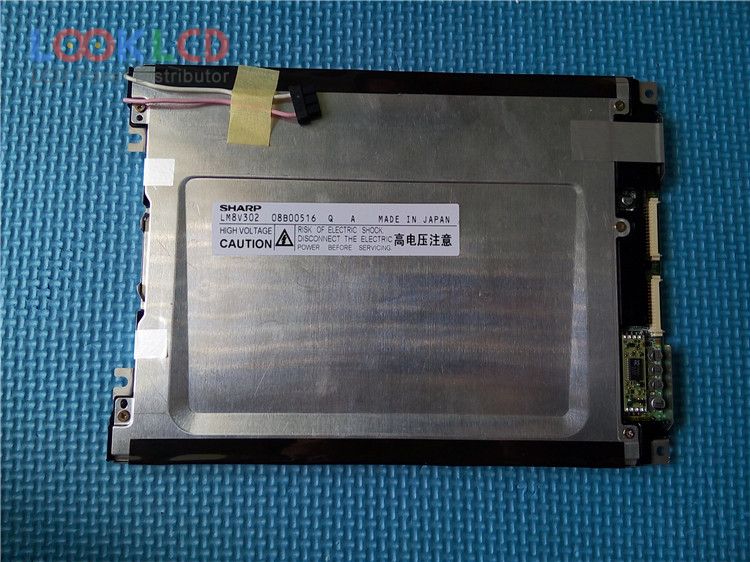

| Part Number | LM8V302 |
| Mark | SHARP |
| Gréisst | 7.7 |
| Applikatioun | IA |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 120 |
| CR | 50:1 |
| Faarwen | Color |
| Géigeliicht | CCFL |
| Interface | Parallel Data |
| Panel Mark | SHARP |
| Panel Modell | LM8V302 |
| Panel Typ | CSTN-LCD , LCM |
| Panel Gréisst | 7.7 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | STN, Normally Black, Transmissive |
| aktiv Beräich | 157.42×118.06 mm |
| skizzéieren | 197×142.5 mm |
| Uewerfläch | |
| Hellegkeet | 120 cd/m² (Typ.) |
| Kontrast Verhältnis | 50:1 (Typ.) |
| weisen Faarwen | Color |
| Äntwert Zäit | 270/80 (Typ.)(Tr/Td) |
| Vue Wénkel | 50/50/50/30 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel Data (8-bit), 29 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
