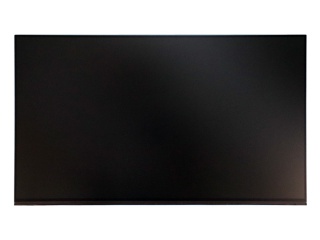

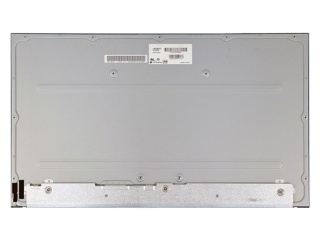

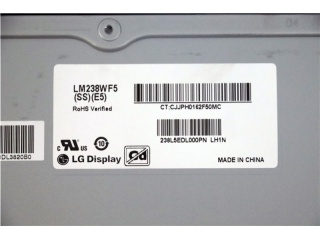

| Part Number | LM238WF5-SSE5 |
| Mark | LG Display |
| Gréisst | 23.8 |
| Applikatioun | Desktop Monitor |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | LG Display |
| diagonal Gréisst | 23.8 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 92PPI |
| aktiv Beräich | 527.04(H)×296.46(V) mm |
| bezel Beräich | - |
| luminance | 250 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 72% NTSC |
| Gewiicht | 1.93/2.03Kgs (Typ./Max.) |
| Frame Taux | 60Hz |
| Interface Typ | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Stroumversuergung | 5.0V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | LM238WF5-SSE5 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 535.2(H)×313.12(V) ×12.76(D) mm |
| Behandlung | Antiglare (Haze 25%), Hard coating (3H) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Liichtquell | WLED , 30K hours , W/O Driver |
| entworf fir | Desktop Monitor |
| Touch Panel | In-Cell Touch |
| LM238WF1-SLE1 | LG Display | 23.8 | 1920×1080 |
| LM238WF1-SLK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSG2 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LM238WQ1-SLA1 | LG Display | 23.8 | 2560×1440 |
| LM238WR1-SLA1 | LG Display | 23.8 | 3840×2160 |
| LM238WR2-SLA1 | LG Display | 23.8 | 3840×2160 |
