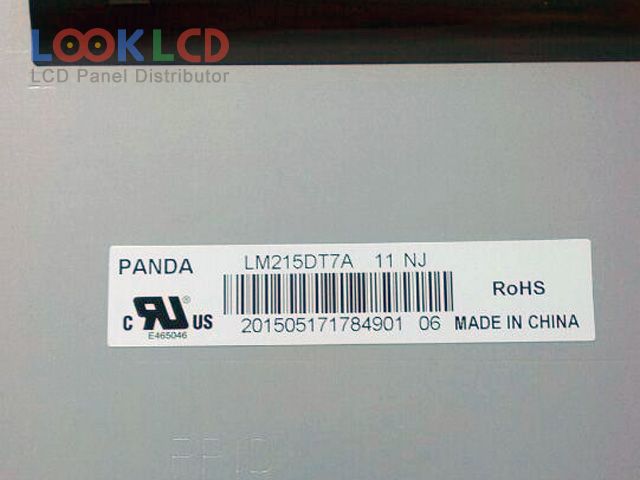

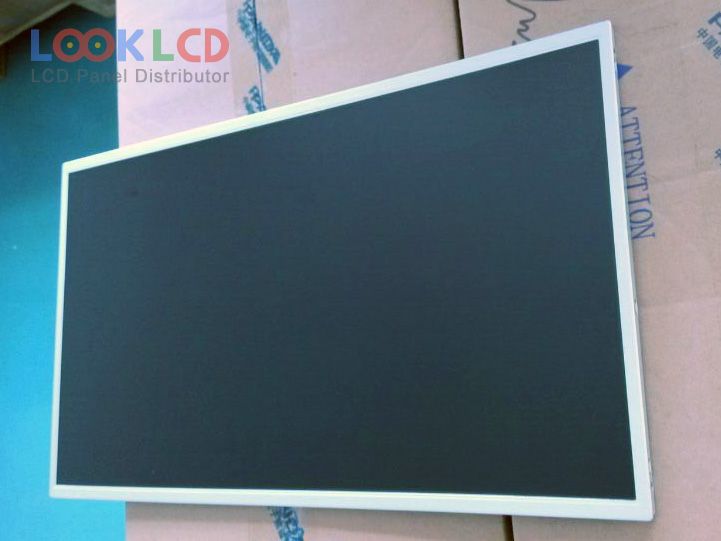

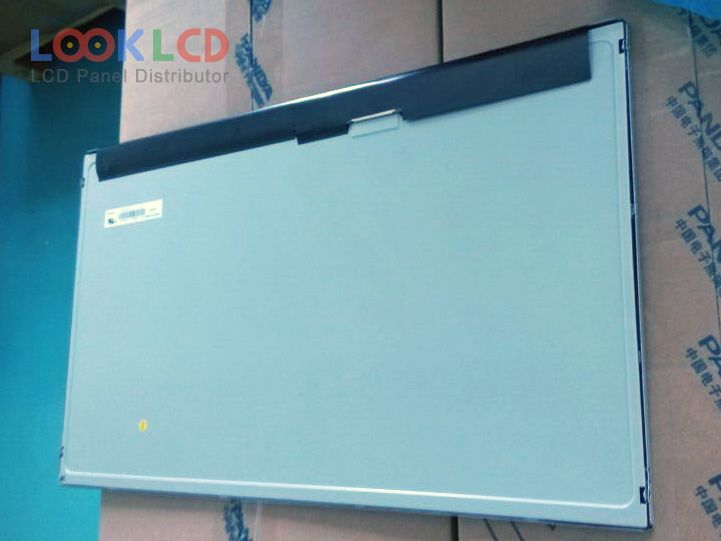

| Part Number | LM215DT7A |
| Mark | PANDA |
| Gréisst | 21.5 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | PANDA |
| Panel Modell | LM215DT7A |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 21.5 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 476.64×268.11 mm |
| skizzéieren | 495.6×292.2×10.8 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Min.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 5 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 15S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| LM215DT1A | PANDA | 21.5 | 1920×1080 |
| LM215DT8A | PANDA | 21.5 | 1920×1080 |
| LM215WF2-SLD1 | LG Display | 21.5 | 1920×1080 |
| LM215WF3-SLA1 | LG Display | 21.5 | 1920×1080 |
| LM215WF3-SLD1 | LG Display | 21.5 | 1920×1080 |
| LM215WF3-SLK1 | LG Display | 21.5 | 1920×1080 |
| LM215WF3-SLN1 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TLE7 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TLG1 | LG Display | 21.5 | 1920×1080 |
| LM215WF5-SLA1 | LG Display | 21.5 | 1920×1080 |
| CLAA150XP01 | CPT | 15.0 | 1024×768 |
| LM150X08-TLB1 | LG Display | 15.0 | 1024×768 |
| LM170E03-TLJ5 | LG Display | 17.0 | 1280×1024 |
| LM185TT1A | PANDA | 18.5 | 1366×768 |
| LM195WD1-TLA1 | LG Display | 19.5 | 1600×900 |
| LM230WF3-SLL1 | LG Display | 23.0 | 1920×1080 |
| LTM170E8-L21 | Samsung | 17.0 | 1280×1024 |
| LTM230HT01 | Samsung | 23.0 | 1920×1080 |
| M185XW01 VF | AUO | 18.5 | 1366×768 |
| M215HW03 V1 | AUO | 21.5 | 1920×1080 |
