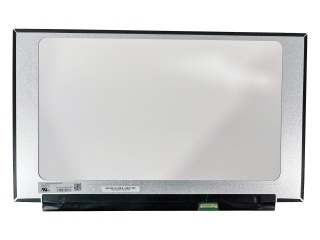

| Part Number | LM156LFAL02 |
| Mark | PANDA |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM , Oxide TFT-LC |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Fabrikant beschwéiert | PANDA |
| Écran Gréisst | 15.6 inch |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 141PPI |
| aktiv Beräich (mm) | 344.16 × 193.59 (H×V) |
| luminance | 250 cd/m² (Typ.) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 262K |
| kontur Form | - |
| Erfrëschungsrate | 60Hz |
| Signal Typ | eDP (2 Lanes) , eDP1.2 Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | LM156LFAL02 |
| Écran Typ | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | - |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Äntwert | 25 (Typ.)(Tr+Tf) ms |
| Aarbecht Modus | FFS, Normally Black, Transmissive |
| benotzt fir | Laptop |
| touchscreen | Without |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XW01 V2 | AUO | 15.6 | 1366×768 |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
