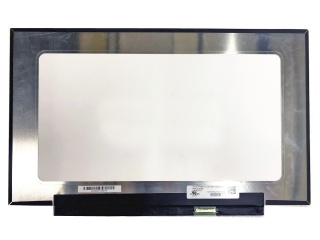

| Part Number | LM140LF2L |
| Mark | PANDA |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | Oxide TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | PANDA |
| diagonal Gréisst | 14.0 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 157PPI |
| aktiv Beräich | 309.312(H)×173.988(V) mm |
| bezel Beräich | - |
| luminance | 220 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K 45% NTSC |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Frame Taux | 60Hz |
| Interface Typ | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | LM140LF2L (NCP002B) |
| Typ | Oxide TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 315.81(H)×197.57(V) ×3(D) mm |
| Behandlung | Antiglare (Haze 25%) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Betribssystemer Modus | FFS, Normally Black, Transmissive |
| Liichtquell | WLED , 15K hours , With LED Driver |
| entworf fir | Laptop |
| Touch Panel | Without |
| B140XW02 V1 | AUO | 14.0 | 1366×768 |
| LP140WF1-SPJ1 | LG Display | 14.0 | 1920×1080 |
| LP140WF1-SPU1 | LG Display | 14.0 | 1920×1080 |
| LP140WF6-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH2-TLE3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLN1 | LG Display | 14.0 | 1366×768 |
| LTN140AT20-701 | Samsung | 14.0 | 1366×768 |
| LTN140KT04-201 | Samsung | 14.0 | 1600×900 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
