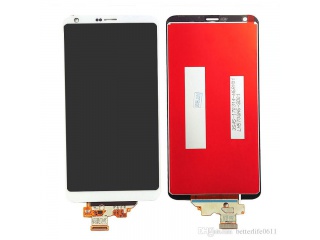

| Part Number | LH570QH6-SD01 |
| Mark | LG Display |
| Gréisst | 5.7 |
| Applikatioun | Mobile Phone |
| Opléisung | 1440×2880 |
| Zesummesetzung | Assembly , a-Si TF |
| Hellegkeet | |
| CR | 1500:1 |
| Faarwen | 16.7M |
| Géigeliicht | 4S3P WLED , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | LG Display |
| Écran Gréisst | 5.7 inch |
| Pixel Zuel | 1440(RGB)×2880 564PPI |
| aktiv Beräich (mm) | 64.8 × 129.6 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 500 cd/m² (Typ.) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 16.7M 85% NTSC |
| mass | 26.6±2.7g |
| Erfrëschungsrate | 60Hz |
| Signal Typ | MIPI (4 data lanes) , 54 pins Connector |
| Spannungsversuergung | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Modell Numm | LH570QH6-SD01 |
| Écran Typ | Assembly , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 68.72 × 145.7 (H×V×D) |
| Behandlung | Hard coating |
| Kontrast Verhältnis | 1500 : 1 (Typ.) (TM) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | - |
| benotzt fir | Mobile Phone |
| touchscreen | PCAP |
