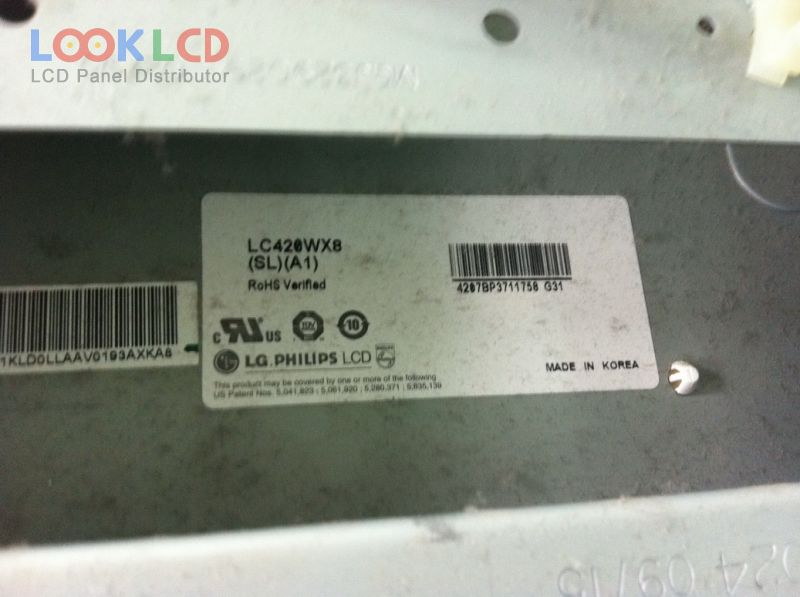

LC420WX8-SLA1

LC420WX8-SLA1
LC420WX8-SLA1 thumb
Mark
LG Display
Gréisst
42
Applikatioun
LCTV
Opléisung
1366×768
Zesummesetzung
LCM
Hellegkeet
500
CR
1000:1
Faarwen
16.7M
Backlight
EEFL
Interface
LVDS
In Stock
10810
Spezifikatioune

Part Number LC420WX8-SLA1
MarkLG Display
Gréisst42
ApplikatiounLCTV
Opléisung1366×768
ZesummesetzungLCM
Hellegkeet500
CR1000:1
Faarwen16.7M
GéigeliichtEEFL
InterfaceLVDS
Panel MarkLG.Philips LCD
Panel ModellLC420WX8-SLA1
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst42 inch
Resolutioun1366(RGB)×768 , WXGA
Display ModusS-IPS, Normally Black, Transmissive
aktiv Beräich930.25×523.01 mm
skizzéieren983×576 mm
UewerflächAntiglare (Haze 13%), Hard coating (3H)
Hellegkeet500 cd/m² (Typ.)
Kontrast Verhältnis1000:1 (Typ.)
weisen Faarwen16.7M (8-bit), CIE193173%
Äntwert Zäit5 (Typ.)(G to G); 10 (Typ.)(Tr+Td)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ18 pcsEEFLWithout Driver
Signal InterfaceLVDS (1 ch, 8-bit), 30 pins
Input Volt12.0V (Typ.)
ApplikatiounLCTV
Famill Modell
LC420WU1-SLB1 LG Display 42 1920×1080
LC420WUD-SBT1 LG Display 42 1920×1080
LC420WUE-SAB1 LG Display 42 1920×1080
LC420WUE-SBC1 LG Display 42 1920×1080
LC420WUE-SDP1 LG Display 42 1920×1080
LC420WUG-SCA1 LG Display 42 1920×1080
LC420WUN-SAA1 LG Display 42 1920×1080
LC420WUN-SAB1 LG Display 42 1920×1080
LC420WUN-SDA1 LG Display 42 1920×1080
LC420WX5-SLA1 LG Display 42 1366×768
