LG Display LC320EXJ-SEK2 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

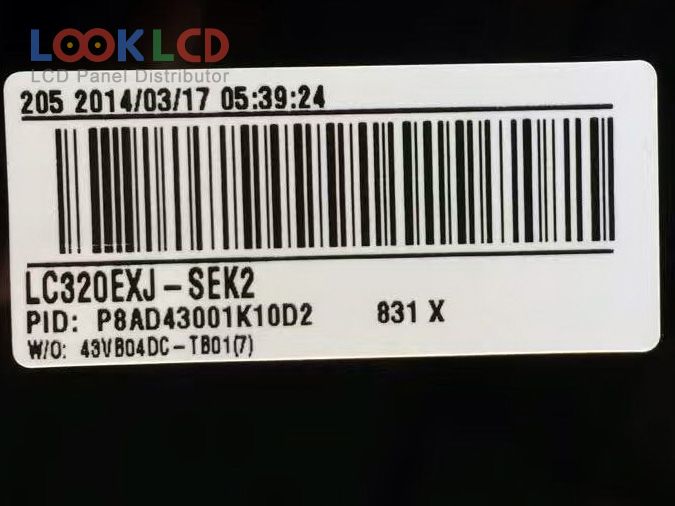

LC320EXJ-SEK2

LC320EXJ-SEK2
LC320EXJ-SEK2 thumb
Mark
LG Display
Gréisst
31.5
Applikatioun
LCTV
Opléisung
1366×768
Zesummesetzung
CELL
Hellegkeet
0
CR
1200:1
Faarwen
16.7M
Backlight
No B/L
Interface
LVDS
In Stock
12777
Spezifikatioune

Part Number LC320EXJ-SEK2
MarkLG Display
Gréisst31.5
ApplikatiounLCTV
Opléisung1366×768
ZesummesetzungCELL
Hellegkeet0
CR1200:1
Faarwen16.7M
GéigeliichtNo B/L
InterfaceLVDS
Panel MarkLG Display
Panel ModellLC320EXJ-SEK2
Panel Typ a-Si TFT-LCD , CELL
Panel Gréisst31.5 inch
Resolutioun1366(RGB)×768 , WXGA
Display ModusS-IPS, Normally Black, Transmissive
aktiv Beräich697.685×392.256 mm
skizzéieren715×410 mm
UewerflächAntiglare (Haze 1%), Hard coating (3H)
Glas Déift0.50+0.50 mm
transmissivitéit5.53% (Typ.)(with Polarizer)
Kontrast Verhältnis1200:1 (Typ.)
weisen Faarwen16.7M (6-bit + Hi-FRC)
Äntwert Zäit8/10 (Typ.)(Tr/Td)
Vue Wénkel89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Signal InterfaceLVDS (1 ch, 8-bit), 30 pins
Input Volt12.0V (Typ.)
ApplikatiounLCTV
Famill Modell
LC320EUA-PEF1 LG Display 31.5 1920×1080
LC320EUD-SDF3 LG Display 31.5 1920×1080
LC320EUD-SEM1 LG Display 31.5 1920×1080
LC320EUN-FFM1 LG Display 31.5 1920×1080
LC320EUN-SDV2 LG Display 31.5 1920×1080
LC320EUN-SEM1 LG Display 31.5 1920×1080
LC320EUN-SFF1 LG Display 31.5 1920×1080
LC320EXJ-SEE2 LG Display 31.5 1366×768
LC320EXJ-SEK1 LG Display 31.5 1366×768
LC320EXJ-SEK2 LG Display 31.5 1366×768
