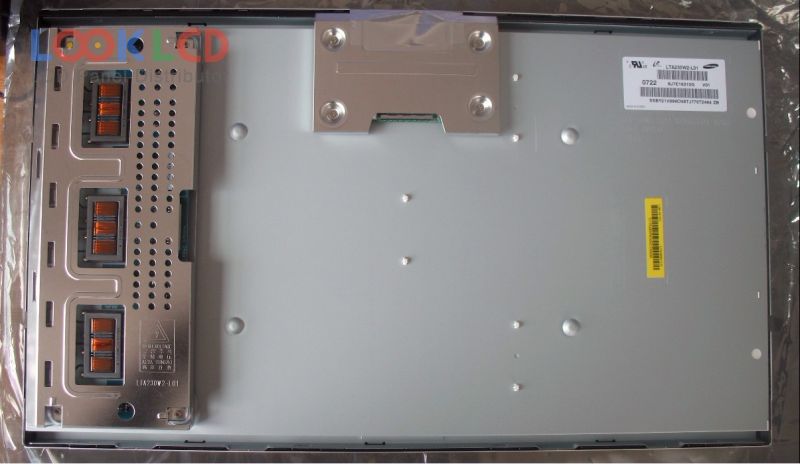

| Part Number | LTA230W2-L01 |
| Mark | Samsung |
| Gréisst | 23.0 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTA230W2-L01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 23.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | PVA, Normally Black, Transmissive |
| aktiv Beräich | 508.125×285.696 mm |
| skizzéieren | 546×318.3 mm |
| Uewerfläch | Antiglare (Haze 44%), Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 1200:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 16/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | LCTV |
