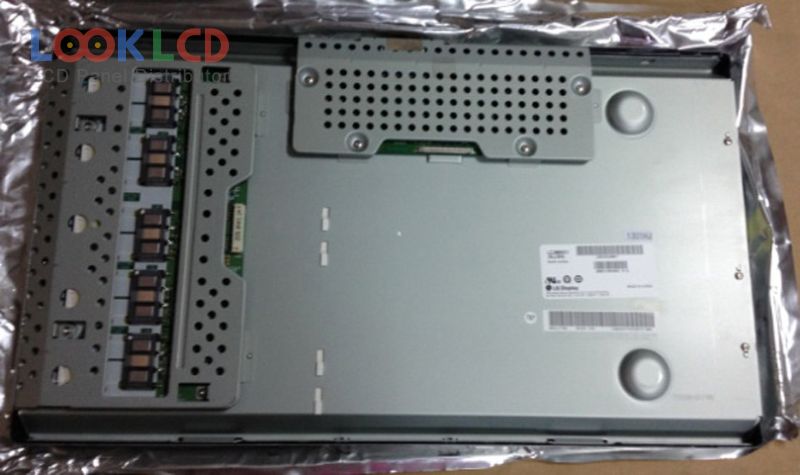

| Part Number | LC200WX1-SLB3 |
| Mark | LG Display |
| Gréisst | 20.0 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 410 |
| CR | 600:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LC200WX1-SLB3 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 20.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 443.609×249.408 mm |
| skizzéieren | 472×275×38.5 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 410 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 8/9 (Typ.)(Tr/Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 5 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
