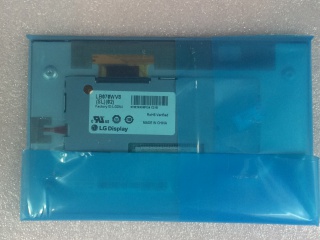

| Part Number | LB070WV8-SL02 |
| Mark | LG Display |
| Gréisst | 7.0 |
| Applikatioun | Industrial Automotiv |
| Opléisung | 800×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | LG Display |
| Modell Numm | LB070WV8-SL02 1 Compatible |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 152.4 × 91.44 (H×V) |
| Kontur (mm) | 170 × 106.3 × 10.7 (H×V×D) |
| Bezel Beräich (mm) | 155.2 × 94.2 (H×V) |
| Behandlung | Antiglare |
| luminance | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10) |
| Äntwert | 15/10 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 60% NTSC |
| mass | 220g (Max.) |
| benotzt fir | Industrial Automotive Display Gaming |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
