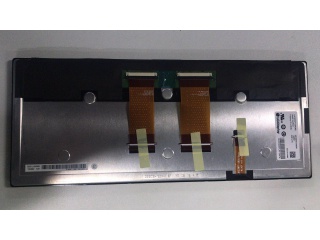

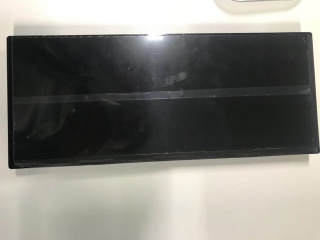

| Part Number | LA123WF1-SR02 |
| Mark | LG Display |
| Gréisst | 12.3 |
| Applikatioun | Automotive Display |
| Opléisung | 1920×720 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | RSDS |
| Mark | LG Display |
| diagonal Gréisst | 12.3 inch |
| Pixel Format | 1920(RGB)×720 167PPI |
| aktiv Beräich | 292.032(H)×109.512(V) mm |
| bezel Beräich | - |
| luminance | 600 cd/m² (Min.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 86% NTSC |
| Gewiicht | 390/405g (Typ./Max.) |
| Frame Taux | 60Hz |
| Interface Typ | RSDS (2 Channel) , 110 pins FPC |
| Stroumversuergung | 3.3/13.0V (Typ.)(VCC/VDD) |
| Ëmwelt | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| Modell | LA123WF1-SR02 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 310(H)×128(V) ×11.05(D) mm |
| Behandlung | Antiglare, Antireflection |
| Kontrast Verhältnis | 800:1 (Min.) (TM) |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Liichtquell | WLED [8S6P] , 10K hours , W/O Driver |
| entworf fir | Automotive Display |
| Touch Panel | Without |
