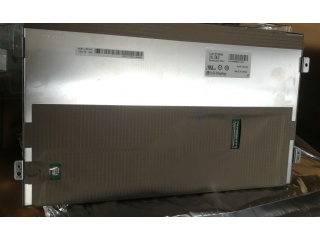

| Part Number | LA121WH1-SL02 |
| Mark | LG Display |
| Gréisst | 12.1 |
| Applikatioun | Automotive Display |
| Opléisung | 1280×720 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 8S3P WLED , 10K hours , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | LG Display |
| Modell Numm | LA121WH1-SL02 |
| Écran Gréisst | 12.1 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×720 (WXGA) 121PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 266.88 × 150.12 (H×V) |
| Kontur (mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| Bezel Beräich (mm) | 269.65 × 152.55 (H×V) |
| Behandlung | Antiglare |
| luminance | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Äntwert | 17/13 (Max.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 62% NTSC |
| mass | 417±5g |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |

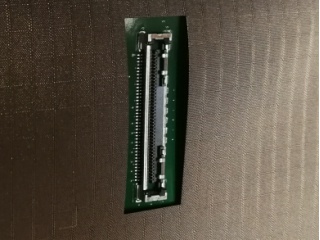

| Signal Typ | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
