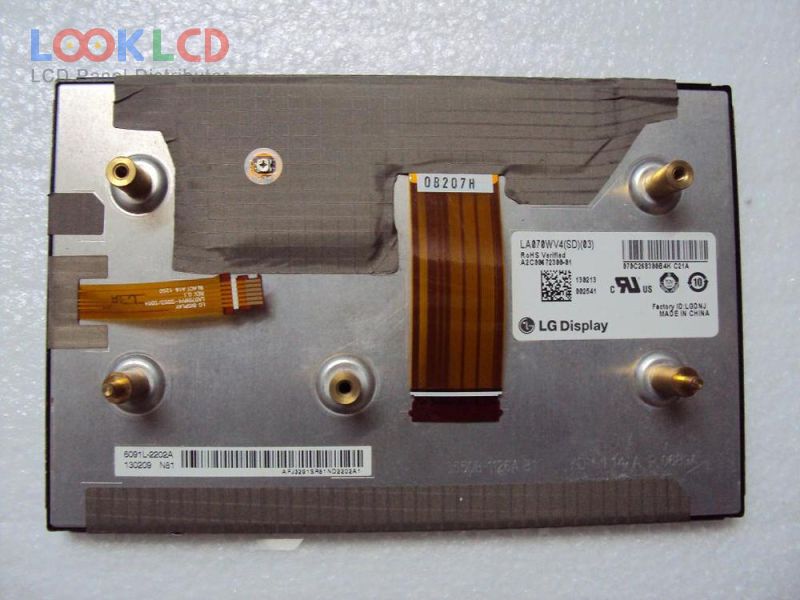

| Part Number | LA070WV4-SD03 |
| Mark | LG Display |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 470 |
| CR | 630:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | LG Display |
| Panel Modell | LA070WV4-SD03 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 170×109.6×31.1 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 470 cd/m² (Min.) |
| Kontrast Verhältnis | 630:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193165% |
| Äntwert Zäit | 15/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL02 | LG Display | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| G121X1-L03 | Innolux | 12.1 | 1024×768 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
