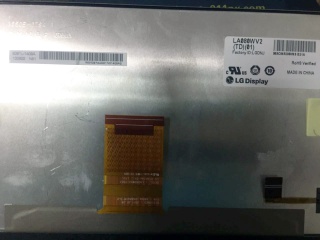

| Part Number | LA070WV2-TD01 |
| Mark | LG Display |
| Gréisst | 7.0 |
| Applikatioun | Automotive Display |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | 9S2P |
| Interface | Parallel |
| Panel Mark | LG Display |
| Panel Modell | LA070WV2-TD01 |
| Panel Gréisst | 7.0" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 800(RGB)×480, WVGA, 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 152.4(W)×91.44(H) mm |
| bezel Ouverture | 154.45(W)×93.24(H) mm |
| Kontur Gréisst | 169(W)×103.45(H) mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 550 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Wénkel | 70/70/50/60 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | - |
| Äntwert Zäit | 6/9 (Typ.)(Tr/Td) |
| weisen Faarwen | 262K 64% NTSC |
| Lampe Typ | 9S2P WLED , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 165/175g (Typ./Max.) |
| Applikatioun | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Input Volt | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
