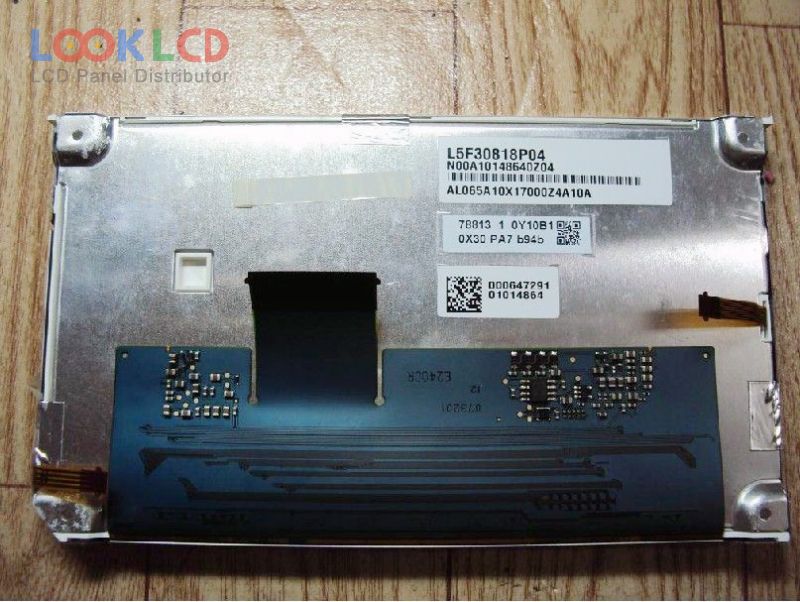

| Part Number | L5F30818P04 |
| Mark | SONY |
| Gréisst | 6.5 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 550 |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SONY |
| Panel Modell | L5F30818P04 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 6.5 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | Normally Black, Transmissive |
| aktiv Beräich | 144×78.24 mm |
| skizzéieren | 159.9×93.4 mm |
| Uewerfläch | |
| Hellegkeet | 550 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 stringsWLEDWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit) + SPI, 50 pins |
| Input Volt | 3.3V (Typ.) |
| rohs: | |
| Applikatioun | CNS |
| L5F30369P01 | SANYO | 6.5 | 800×480 |
| L5F30442T15 | Epson | 6.5 | 800×480 |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| L5F30705T10 | Epson | 5.0 | 400×240 |
| L5F30774P01 | Epson | 2.6 | 240×320 |
| L5F30812P00 | Epson | 13.3 | 1024×768 |
| L5F30818P01 | Epson | 6.5 | 800×480 |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| C065GW04 V1 | AUO | 6.5 | 400×240 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| G121X1-L01 | Innolux | 12.1 | 1024×768 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
