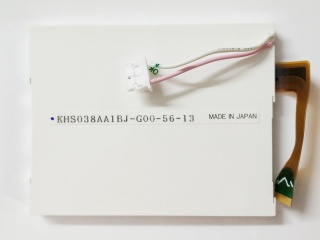

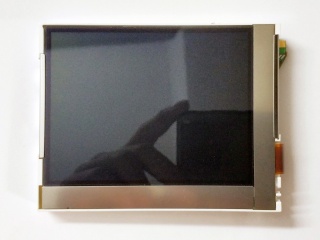

| Part Number | KHS038AA1BJ-G00 |
| Mark | Kyocera |
| Gréisst | 3.8 |
| Applikatioun | Industrial |
| Opléisung | 240×320 |
| Zesummesetzung | LCM, CSTN-LCD |
| Hellegkeet | |
| CR | |
| Faarwen | Color |
| Géigeliicht | 1 pcs CCFL , No Driver |
| Interface | Parallel |
| Fabrikant beschwéiert | Kyocera |
| Modell Numm | KHS038AA1BJ-G00 |
| Écran Gréisst | 3.8 inch |
| Écran Typ | LCM, CSTN-LCD |
| Pixel Zuel | 240(RGB)×320 (QVGA) 105PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 57.58 × 76.78 (H×V) |
| Kontur (mm) | - |
| Vue Wénkel | 50/45/20/30 (Typ.)(CR≥2) |
| Äntwert | 250/150 (Typ.)(Tr/Td) ms |
| gutt Vue op | - |
| Aarbecht Modus | STN |
| Faarfdéift | Color |
| mass | - |
| benotzt fir | Industrial |
| Erfrëschungsrate | 75Hz |
| touchscreen | - |
| Signal Typ | Parallel Data (1ch, 8-bit) , FPC |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
