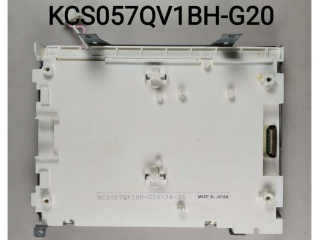

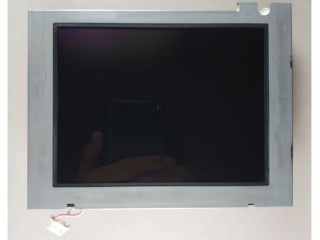

| Part Number | KCS057QV1BH-G20 |
| Mark | Kyocera |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 320×240 |
| Zesummesetzung | LCM, CSTN-LCD |
| Hellegkeet | |
| CR | 40:1 |
| Faarwen | Color |
| Géigeliicht | 1 pcs CCFL , 40K hours , No Driver |
| Interface | Parallel |
| Fabrikant beschwéiert | Kyocera |
| Modell Numm | KCS057QV1BH-G20 |
| Écran Gréisst | 5.7 inch |
| Écran Typ | LCM, CSTN-LCD |
| Pixel Zuel | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 115.2 × 86.4 (H×V) |
| Kontur (mm) | - |
| luminance | - |
| Kontrast Verhältnis | 40 : 1 (Typ.) (TM) |
| Vue Wénkel | 50/50/30/30 (Typ.)(CR≥2) |
| Äntwert | 220/110 (Typ.)(Tr/Td) ms |
| gutt Vue op | - |
| Aarbecht Modus | STN, Normally Black, Transmissive |
| Faarfdéift | Color |
| mass | - |
| benotzt fir | Industrial |
| Erfrëschungsrate | - |
| touchscreen | Without |
| Signal Typ | Parallel Data (1ch, 8-bit) , Connector 15 pins |
