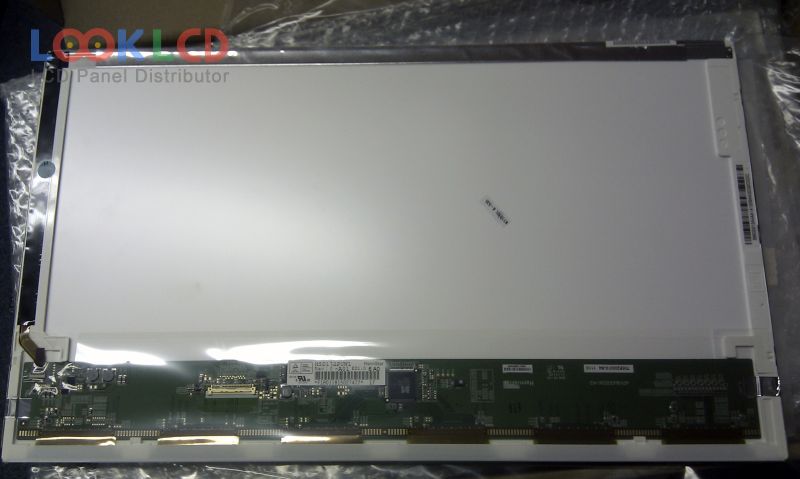

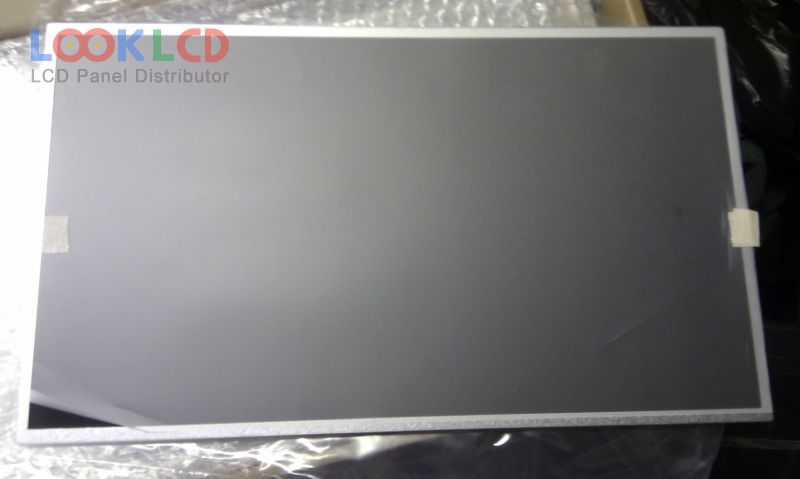

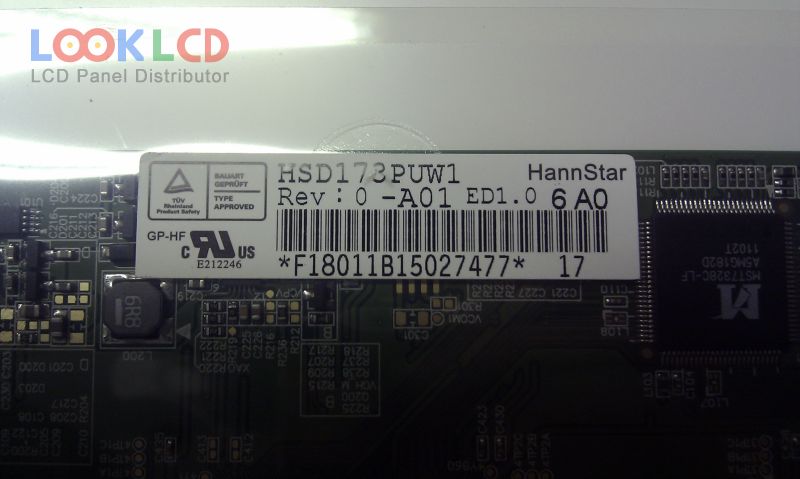

| Part Number | HSD173PUW1-A01 |
| Mark | HannStar |
| Gréisst | 17.3 |
| Applikatioun | NBPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | HannStar |
| Panel Modell | HSD173PUW1-A01 2 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.3 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 381.888×214.812 mm |
| skizzéieren | 398.1×232.8×5.8 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 2.4/5.6 (Typ.))(Tr/Td) |
| Vue Wénkel | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| HSD173PUW1-A00 | HannStar | 17.3 | 1920×1080 |
| HSD173PUW1-A01 | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN2 | LG Display | 17.3 | 1600×900 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LTN173HT02-C01 | Samsung | 17.3 | 1920×1080 |
| LTN173HT02-X01 | Samsung | 17.3 | 1920×1080 |
| N173HGE-L11 | Innolux | 17.3 | 1920×1080 |
| N173O6-L02 | Innolux | 17.3 | 1600×900 |
| B121EW09 V2 | AUO | 12.1 | 1280×800 |
| LM12S029 | SHARP | 12.1 | 800×600 |
| LP104S3 | LG Display | 10.4 | 800×600 |
| LP154WE3-TLA2 | LG Display | 15.4 | 1680×1050 |
| LQ150X1LBE1 | SHARP | 15.0 | 1024×768 |
| LQ164M1LD4CV | SHARP | 16.4 | 1920×1080 |
| LTM15C460F | TOSHIBA | 15.0 | 1024×768 |
| LTN184KT01-101 | Samsung | 18.4 | 1680×945 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
