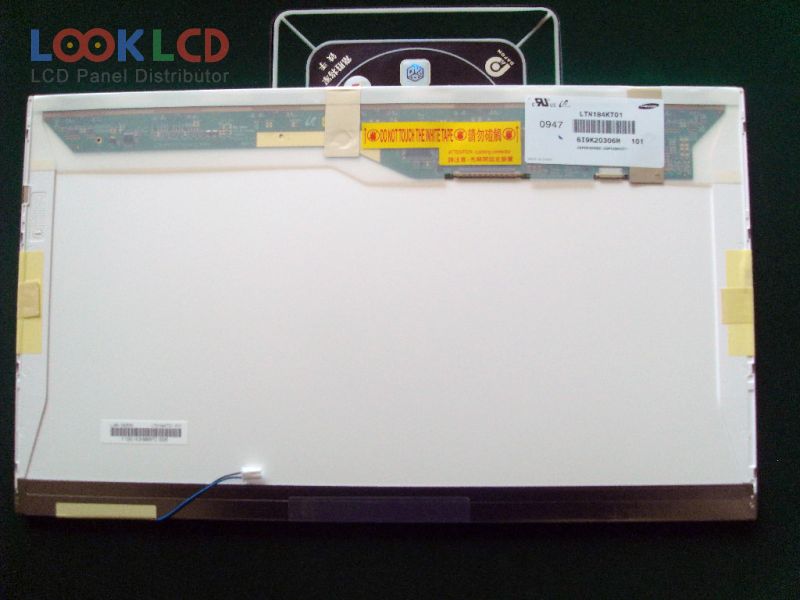

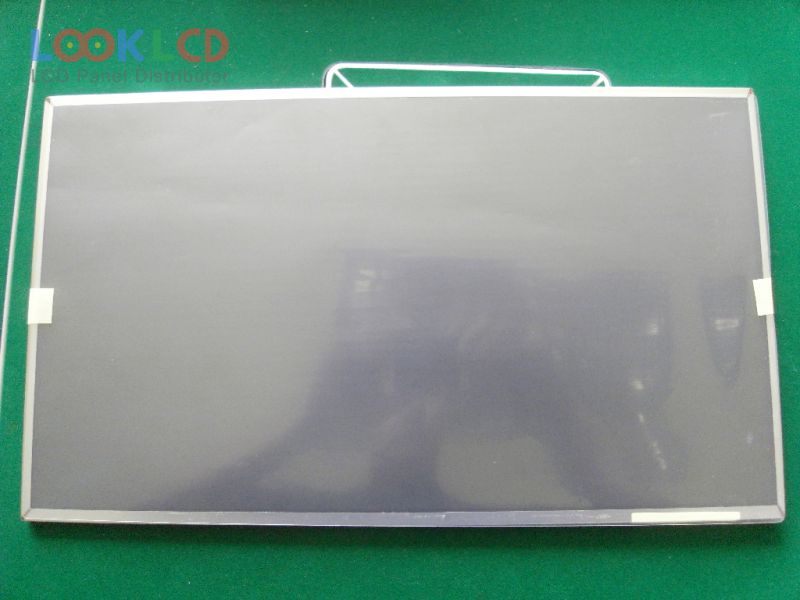

| Part Number | LTN184KT01-101 |
| Mark | Samsung |
| Gréisst | 18.4 |
| Applikatioun | NBPC |
| Opléisung | 1680×945 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN184KT01-101 4 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 18.4 inch |
| Resolutioun | 1680(RGB)×945 , HD+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 408.24×229.635 mm |
| skizzéieren | 422.5×246×6.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LTN184KT01-101 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-A01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-F01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-J01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-S02 | Samsung | 18.4 | 1680×945 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
| N184H4-L04 | Innolux | 18.4 | 1920×1080 |
| N184H6-L02 | Innolux | 18.4 | 1920×1080 |
| LP141WP1-TLC1 | LG Display | 14.1 | 1440×900 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP173WD1-TLN4 | LG Display | 17.3 | 1600×900 |
| LQ106K1LA01B | SHARP | 10.6 | 1280×768 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| LT121SU-121 | Samsung | 12.1 | 800×600 |
| LTD089EXWS | TOSHIBA | 8.9 | 1280×768 |
| LTD121EC5V | TOSHIBA | 12.1 | 1024×768 |
| LTN150XG-L04 | Samsung | 15.0 | 1024×768 |
| N116HSE-EJ1 | Innolux | 11.6 | 1920×1080 |
