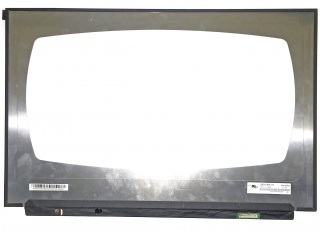

| Part Number | HSD170PUW1-B00 |
| Mark | HannStar |
| Gréisst | 17.0 |
| Applikatioun | Laptop |
| Opléisung | 1920×1200 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | HannStar |
| Modell | HSD170PUW1-B00 |
| diagonal Gréisst | 17.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1200 [WUXGA] 133PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 365.184(H)×228.24(V) mm |
| kontur dim. | 373.248(H)×241.38(V) ×6(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare |
| luminance | 270 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | IPS Pro, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 95% DCI-P3 |
| Liichtquell | WLED , 15K hours , With LED Driver |
| Form Stil | - |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
