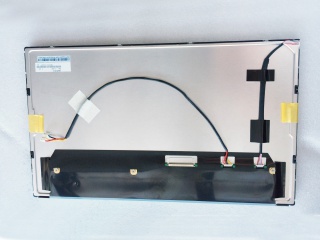

| Part Number | HSD156JUW1-A00 |
| Mark | HannStar |
| Gréisst | 15.6 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 8S6P WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | HannStar |
| Modell Numm | HSD156JUW1-A00 |
| Écran Gréisst | 15.6 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 344.16 × 193.59 (H×V) |
| Kontur (mm) | 363.8 × 215.9 × 12 (H×V×D) |
| Bezel Beräich (mm) | 346 × 195.4 (H×V) |
| Behandlung | Antiglare |
| luminance | 850 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 18/17 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| Faarfdéift | 16.7M 70% NTSC |
| mass | TBD |
| benotzt fir | Industrial Outdoor High Brightness Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Spannungsversuergung | 5.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
