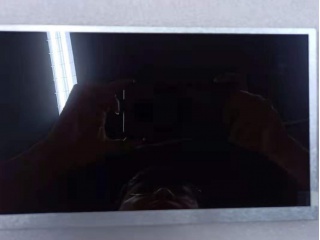

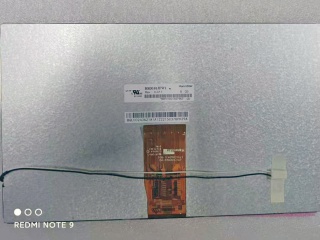

| Part Number | HSD101JFW1-C11 |
| Mark | HannStar |
| Gréisst | 10.1 |
| Applikatioun | Automotive Display |
| Opléisung | 1024×600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | HannStar |
| Modell | HSD101JFW1-C11 |
| diagonal Gréisst | 10.1 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×600 [WSVGA] 117PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 222.72(H)×125.28(V) mm |
| kontur dim. | 235(H)×143(V) ×6.3(D) mm |
| bezel Beräich | 226(H)×128.5(V) mm |
| Behandlung | Hard coating (3H) |
| luminance | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | IPS Pro, Normally Black, Transflective |
| Ënnerstëtzung Faarf | 16.2M 45% NTSC |
| Liichtquell | WLED [6S7P] , 20K hours , W/O Driver |
| Gewiicht | 265/275g (Typ./Max.) |
| entworf fir | Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 8-bit) , 60 pins FPC |
| Stroumversuergung | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
