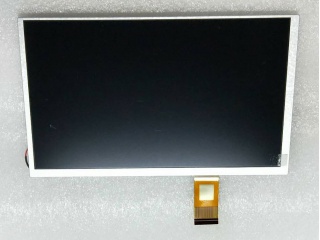

| Part Number | HSD090LFW1-B00 |
| Mark | HannStar |
| Gréisst | 9.0 |
| Applikatioun | Automotive Display |
| Opléisung | 1024×600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | HannStar |
| Modell | HSD090LFW1-B00 |
| diagonal Gréisst | 9.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×600 [WSVGA] 132PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 196.608(H)×114.15(V) mm |
| kontur dim. | 211.1(H)×126.5(V) ×6(D) mm |
| bezel Beräich | 200.01(H)×117.55(V) mm |
| Behandlung | Glare (Haze 0%) |
| luminance | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 17/18 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | IPS Pro, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 262K/16.2M 50% NTSC |
| Liichtquell | WLED , 150K hours , W/O Driver |
| Gewiicht | 230g (Typ.) |
| entworf fir | Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Stroumversuergung | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
