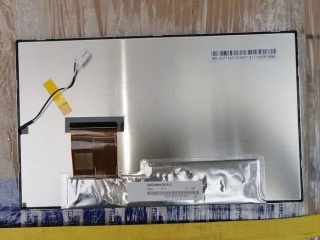

| Part Number | HSD080JHW3-A11 |
| Mark | HannStar |
| Gréisst | 8.0 |
| Applikatioun | Outdoor High Brightn |
| Opléisung | 1280×720 |
| Zesummesetzung | , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED , No Driver |
| Interface | |
| Fabrikant beschwéiert | HannStar |
| Modell Numm | HSD080JHW3-A11 |
| Écran Gréisst | 8.0 inch |
| Écran Typ | , a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×720 (WXGA) 184PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 176.64 × 99.36 (H×V) |
| Kontur (mm) | - |
| Bezel Beräich (mm) | - |
| Behandlung | Antireflection |
| luminance | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 17/18 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| Faarfdéift | 262K/16.7M |
| mass | - |
| benotzt fir | Outdoor High Brightness Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
